Fully Welded Trunnion Ball Valve, API 6D, A105N, 12 IN, 300 LB

Key Specifications / Features

Model no. : 12BW3BA105

Explore our Fully Welded Ball Valve Factory featuring a 12 Inch size, DN300 specifications, 300 LB and PN50 ratings, API 6D compliance, Three Pieces Forged Body design, ASTM A105N construction, DEVLON Seat for optimal performance, A105+ENP Trim, and BW+Extended Nipples. Trust in our quality and precision for your industrial valve needs.


Detail Information

Fully Welded Trunnion Mounted Ball Valve, API 6D, 12 inch, 300 LB, BW+extended Nipples, A105N Body, A105+ENP Trim, Gear Operation

Valve Description:
1811060 Trunnion Mounted Ball Valve 12BW3BA105
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Welded Bonnet, Soft Seat
Nominal size: 12 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: BW+extended Nipples
Operation: Gear Box
Body Material: ASTM A105N
Trim Material: A105N+ENP, DEVLON Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Full welded for natural gas pipeline

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

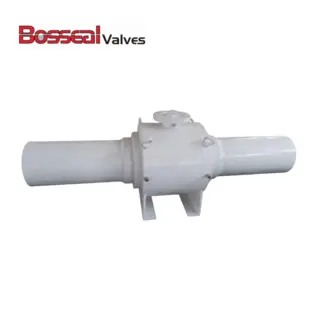

Next: Three Pieces Trunnion Ball Valve, ASTM A105N, 8 Inch, 300 LB, BW
