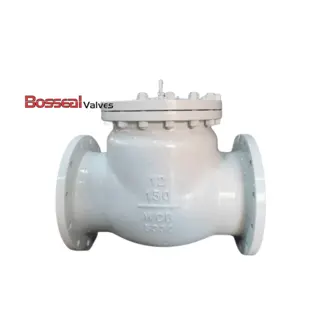

Full Opening Swing Check Valve, A216 WCB, 32 IN, ANSI 150 LB

Key Specifications / Features

Model no. : 1841036

We specialize in fabricating full opening swing check valves from ASTM A216 WCB carbon steel, renowned for its robustness and reliability in high-temperature environments. Our valves feature Trim 8 components, ensuring optimal performance and durability. Sized at 32 inches and rated for Class 150 LB pressure, they excel in rigorous industrial applications. Compliant with BS 1868 and API 594 standards, these valves are crafted to meet international quality norms. With RF flanged ends for secure installation, our swing check valves offer easy integration into piping systems. Choose our products for dependable operation and longevity in challenging operational conditions.

Detail Information

API 6D Swing Check Valve, 32 Inch, Class 150 LB, Full Opening, Carbon Steel, A216 WCB Body With Trim 8.


Valve Description


1841036 Swing Check Valve
Key Features: Full Opening Design Available, Bolted Bonnet, Operation Lever Design Available
Design Standard: API 6D, BS 1868, API 594
Body Material: ASTM A216 WCB, Stainless Steel, ASTM A351 CF8, CF8M, C95800 Alloy, ASTM A352 LCB, ASTM A995 4A, 5A.
Structure: Bolted Bonnet
Nominal Size: 32 Inch
Nominal Class: 150 LB
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Bore Type: Standard Bore(BS 1868, API 594), Full Bore(API 6D)
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: Flanged RF
Operation: Lever


Product Offering


Body Materials: Stainless Steel, Alloy Steel, Carbon Steel, Aluminum-bronze
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: 150-2500 LB
Operation: Not Applicable (Manual or actuated available for special request)
Working temperature: -196°C - +450°C
End Connections: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW).
