Forged Steel Y Globe Valve, ASTM A182 F11, 3/4 IN, 1500 LB

Key Specifications / Features

Model no. : 1852041

As a premier Y-pattern globe valve manufacturer in China, we deliver top-quality forged steel valves engineered for exceptional performance. Our 3/4 inch, Class 1500 LB valves, made from ASTM A182 F11, adhere to API 602 and ASME B16.34 standards. These valves feature an OS&Y (Outside Screw and Yoke) design and a bolted bonnet, ensuring easy maintenance and reliable sealing. The butt weld (BW) end provides a secure and robust connection, ideal for high-pressure applications. Trust our expertise to provide durable, high-performance globe valves tailored to meet the most demanding industrial needs.

Detail Information

Forged Steel Y Globe Valve, ASME B16.34, ASTM A182 F11, 3/4 Inch, ANSI 1500, OS&Y, Butt Weld End.

Valve Description:

1852041 Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Bonnetless, Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet,
Nominal Size: 3/4 Inch
Nominal Class: Class 1500 LB, PN 250
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F316, ASTM A182 F11, ASTM A105N, ASTM A182 F22, ASTM A182 F91
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
Outside Screw & Yoke
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Product Portfolio:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

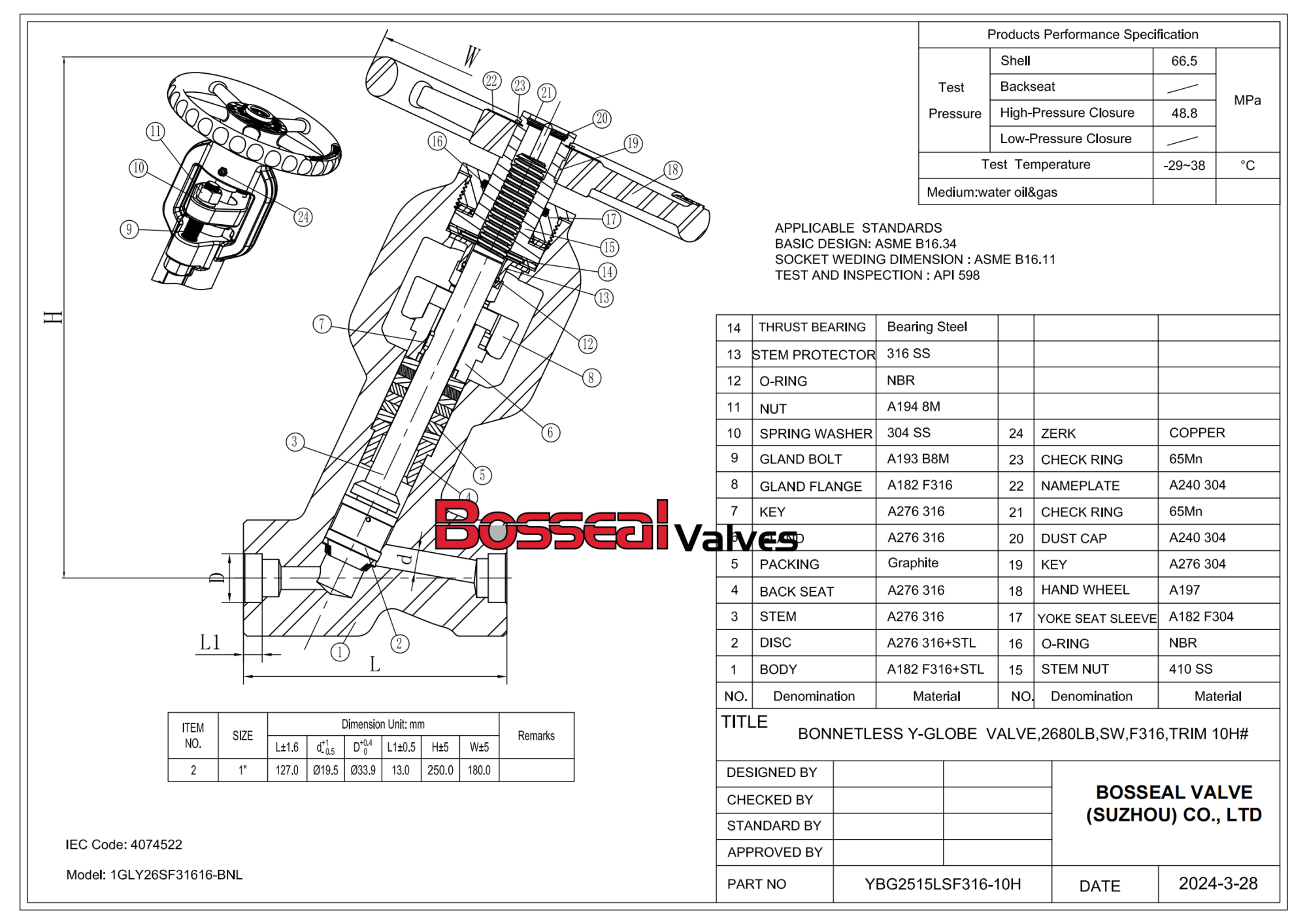

Drawing for Globe Valve
