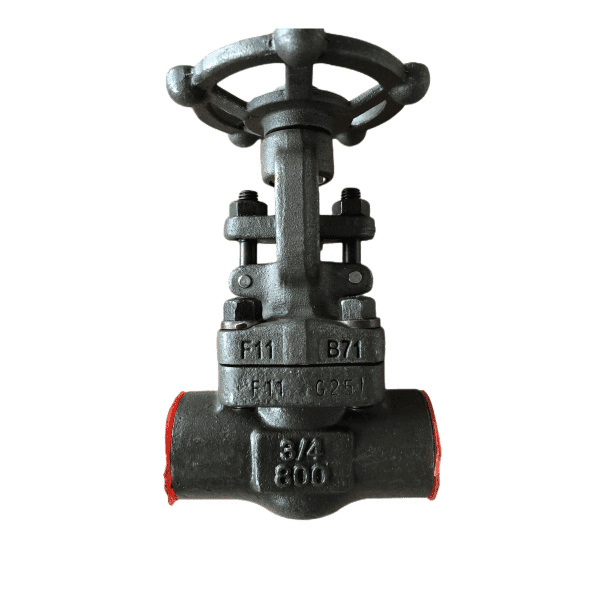

Forged ASTM A182 F11 Gate Valve, API 602, 3/4 IN, 800 LB, SW

Key Specifications / Features

Model no. : 0.75G8SF1105

Welcome to our API 602 Forged Gate Valve Factory! We offer a high-quality gate valve with the following specifications: 3/4 Inch size, Class 800 LB rating, DN0 designation, ASME B16.34 compliance, Bolted Bonnet design, Trim 5, SW connection, Independent backseat, and a Fully Guided Solid Wedge. Trust us to provide reliable and efficient gate valves for your industrial needs.


Detail Information

API 602 Forged Gate Valve, 3/4 INCH, 800 LB, SW, F11 Body, Trim 5, Handwheel

Valve Description:
1851013 API 602 Forged Gate Valve 0.75G8SF1105
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 3/4 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: SS 410 + STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
