Floating Ball Valve, 2 Inch, 800 LB, A105N, API 608, API 6D, ISO 17292

Key Specifications / Features

Model no. : 2BB8SNA105

Find high-quality floating ball valves in various specifications including 2 Inch, DN50, 800 LB, PN130, made from ASTM A105N with ASTM A182 F316 Trim and RPTFE Seat. Our valves comply with API 608, ISO 17292, and API 6D standards, featuring FNPT X SW connections and lever lockable design.


Detail Information

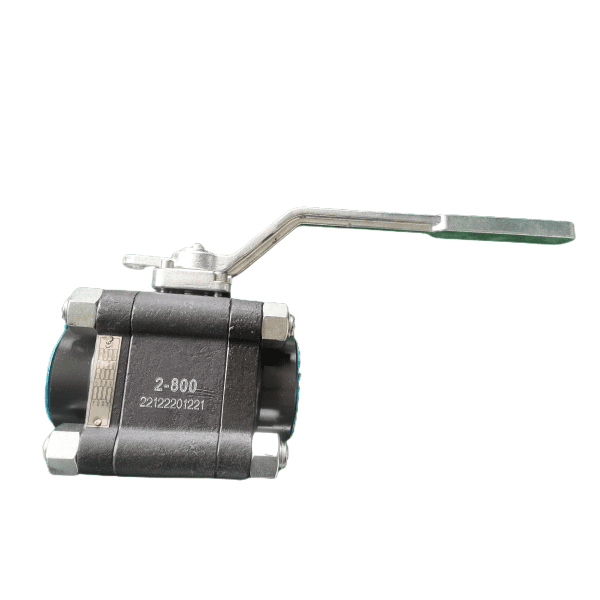

2-inch, 800 LB, Floating Ball Valve, SW X FNPT Threaded End, ISO 17292, A105N body with 316 Trim, RPTFE seat and lever operation

Valve Description:
1812055 Floating Ball Valve 2BB8SNA105
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Yoke for Limit Switch
Nominal size: 2 Inch, DN50
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: FNPT X SW
Operation: Lever Lockable
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
