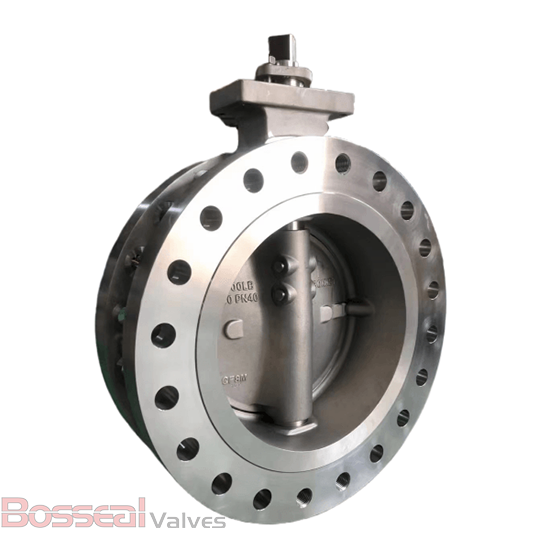

Flanged Butterfly Valve, ASTM A890 5A, CL 150 LB, 48 Inch

Key Specifications / Features

Model no. : 1862263

As a manufacturer of duplex stainless steel butterfly valves, we specialize in producing high-performance valves that meet API 609 Category B and EN 593 standards. Our 48-inch, Class 150 LB valve features a robust A890 5A duplex stainless steel body with a double offset design, RPTFE seat, and a 17-4PH stem for enhanced strength and corrosion resistance. Bosseal valves provide significant advantages, including zero leakage, low torque operation, long service life, low emissions, bi-directional flow, and fire-safe features. Ideal for demanding isolation and regulating applications, these valves ensure reliable performance and durability.

Detail Information

API 609 Butterfly Valve, RPTFE Seated, 48 Inch/DN1200, Class 150 LB, Gear Operation.

Valve Description

1862263 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, Titanium, ASTM A351 CF8, ASTM A890 4A.
Nominal Size: 48 Inch, DN1200
Nominal Class: Class 150 LB, PN16
Structure: Double Offset, Double Eccentric
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.



Name*
E-mail*
Rate*
Comments*

Next: API 609 Flanged Butterfly Valve, CL 150, 2 IN, Titanium

Previous: ASTM A216 WCB Flanged Butterfly Valves, API 609, 42IN, CL150

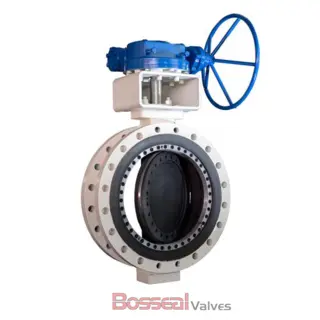

Similar Products
