EN 593 Titanium Butterfly Valve, 14 IN, CL300, API 609 Cat B

Key Specifications / Features

Model no. : 1862146

We offer high-quality titanium butterfly valves featuring a double eccentric design. Our valves conform to EN 593 and API 609 Category B standards, ensuring superior performance and reliability. Available in a 14-inch size (DN350) with a 300 LB rating and PN50 pressure class, they are equipped with a soft seat for excellent sealing. The valves also feature a 17-4PH stainless steel stem for enhanced strength and durability, making them ideal for demanding industrial applications. As a leading butterfly valve manufacturer in China, we are committed to delivering top-notch products that meet the highest industry standards.

Detail Information

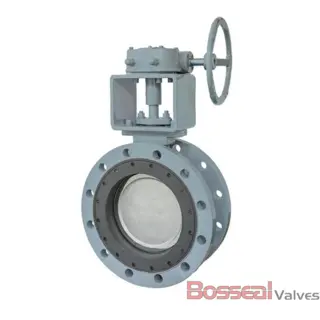

Double Eccentric High-Performance Butterfly Valve, 14 Inch/DN350, 300 LB, RPTFE Seat, Double Flanged Ends.

Valve Description

1862146 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 14 Inch, DN350
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150-300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
