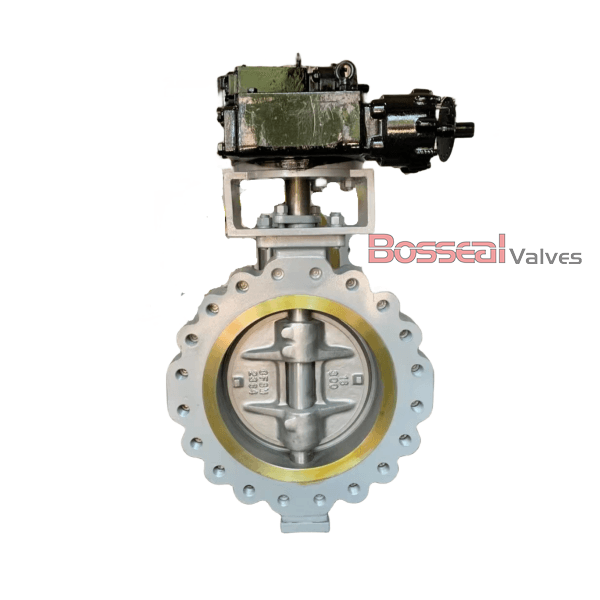

EN 593 Lug Butterfly Valve, ASTM B148 C95800, CL150, 16 IN

Key Specifications / Features

Model no. : 1862336

We supply API 609 Category B lug butterfly valves built to EN 593 standards, featuring a double offset design for enhanced performance. Equipped with a Monel K500 stem and an ASTM B148 C95800 body, these 16-inch, Class 150 LB valves are soft-seated with an RPTFE seat for reliable sealing. Bosseal valve advantages include zero leakage, low torque operation, extended working life, low emissions, bi-directional flow, and fire-safe capabilities, making them ideal for demanding industrial applications. As a trusted supplier, we prioritize quality and performance in every valve.

Detail Information

API 609 Double Offset Butterfly Valve, 16 Inch/DN400, CL 150 LB, RPTFE Seat.

Valve Description

1862336 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 16 Inch, DN400
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A216 WCB, Titanium Alloy, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium.
Normal Diameter: 1/2 - 48 Inch (DN15-DN1200)
Pressure Range: CL 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
