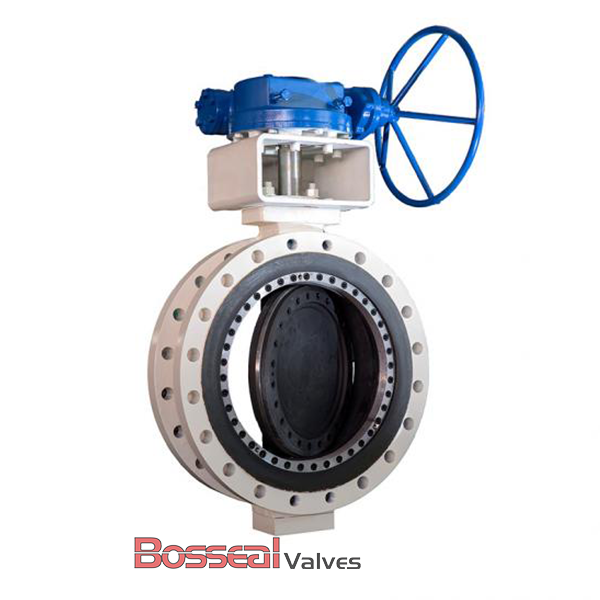

EN 593 Flanged Butterfly Valve, CL 150, 24 IN, A216 WCB

Key Specifications / Features

Model no. : 1862255

As a leading carbon steel butterfly valve manufacturer in China, we offer double-offset butterfly valves built to API 609 and EN 593 standards. Featuring a WCB body, our 24-inch valves are rated for 150 LB (PN20) and come with a soft seat for high performance. Bosseal Valve delivers exceptional advantages such as zero leakage, low torque, low emissions, bi-directional flow capability, and fire-safe design. These valves are ideal for demanding applications, ensuring reliable and efficient operation in various industrial settings.

Detail Information

Double Offset Butterfly Valves, High-Performance, ASTM A216 WCB Body, 17-4PH Stem.

Valve Description

1862255 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Operation: Gear
Nominal Size: 24 Inch, DN600
Nominal Class: Class 150 LB, PN20
Body Material: ASTM A216 WCB, ASTM A351 CF8, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
Test and Inspection: API 598, API 609
Face to Face: API 609, EN 593
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
