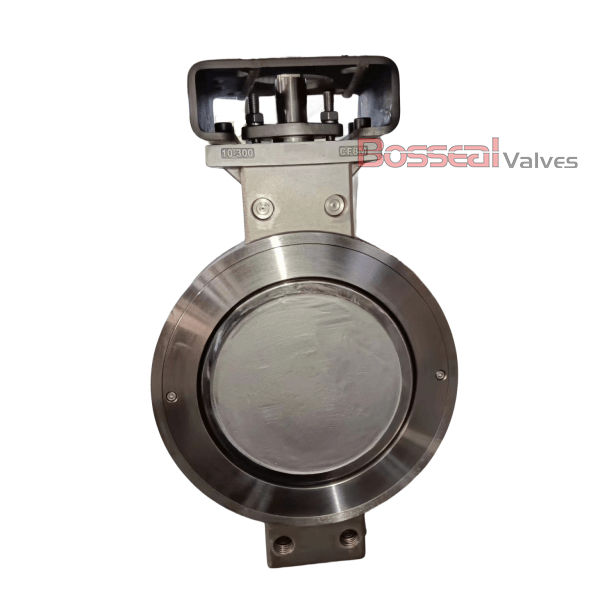

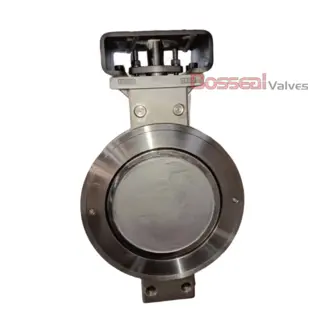

EN 593 Double Offset Butterfly Valve, A351 CF8M, CL150, 28IN

Key Specifications / Features

Model no. : 1862215

As China's leading stainless steel lug butterfly valve manufacturer, we offer high-performance double-offset butterfly valves designed to meet API 609 and EN 593 standards. Available in sizes up to 28 inches (DN700) and rated for 150 LB and PN16, these valves feature a soft seat for reliable sealing. Ideal for pipelines requiring frequent open and close operations, they are perfect for both isolation and regulating applications. Built for durability and efficiency, our valves ensure optimal performance in demanding environments.

Detail Information

High-Performance Butterfly Valves, CF8M Body, 28 Inch/DN700, 150 LB, Lug Ends.

Valve Description

1862215 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 28 Inch, DN700
Nominal Class: Class 150 LB, PN16
Body Material: ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800.
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
End Connection: Lug
Operation: Gear
Seat: RPTFE, PPL
Test and Inspection: API 598, API 609
Face to Face: API 609, EN 593
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
