Double Flanged

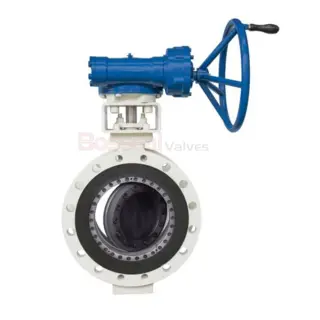

Butterfly Valve, RPTFE Seated, 8 Inch/DN200, Class 300 LB, Gear Operation.
Valve Description
1862143 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 4A, Titanium, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 5A.
Nominal Size: 8 Inch, DN200
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Normal Diameter: |
1/2-48 Inch (DN15-DN1200) |
| Pressure Range: |
Class 150 LB - 300 LB |
| Working Temperature: |
-26°C - +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged |
Introduction of Double Offset Butterfly Valve
The double offset butterfly valve is commonly used in pipelines for isolation and flow regulation, particularly in applications requiring frequent opening and closing. Bosseal Valve offers key advantages, including zero leakage, low torque operation, long service life, low emissions, bi-directional flow capability, and fire-safe design.
