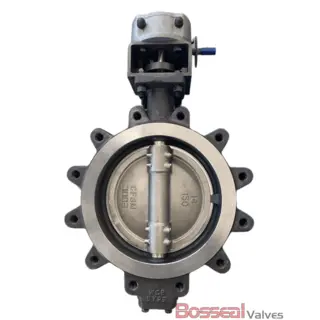

EN 593 Butterfly Valve, ASTM A351 CF8M, CL 150, 12 Inches

Key Specifications / Features

Model no. : 1862208

We offer 12-inch, DN300 butterfly valves featuring a durable 17-4PH stainless steel stem. Designed with a double offset configuration, these valves meet EN 593 and API 609 Category B standards, ensuring high performance and reliability. Constructed with a CF8M stainless steel body, they are rated for 150 LB and PN50 pressure classes. The lug end design provides secure installation and robust operation, making them ideal for demanding industrial applications. As a leading butterfly valve manufacturer in China, we are committed to delivering top-quality products and exceptional performance.

Detail Information

EN 593 Double Offset Butterfly Valve, High-Performance, 12 Inches, 150 LB, 17-4PH Stem.

Valve Description

1862208 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 12 Inch, DN300
Nominal Class: Class 150 LBS, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Lug
Structure: Double Offset, Double Eccentric
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replacement seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire-safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
