Key Specifications / Features
Discover our EN 593 concentric butterfly valve from a factory compliant with API 609 Cat A standards. This valve boasts a 6-inch size, suitable for 150 LB applications, with DN150 and PN16 specifications. Crafted with ASTM B148 C95800 Al-bronze body and disc, paired with EPDM seat and lug connection for optimal performance.
Detail Information

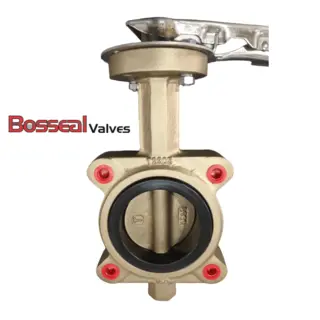

Concentric Butterfly Valve, 6 inch, 150 LB, PN16, LUG, Al-bronze B148 C95800 body, C95800 Al-Brz Disc, EPDM lined seat, Lever Operation
Valve Description:
1861012 Concentric Butterfly Valve 6T1LC958
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: LUG
Operation: Lever Operation
Body Material: ASTM B148 C95800
Trim Material: B148 C95800 disc, EPDM seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space, for seawater, offshore, FPSO
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
