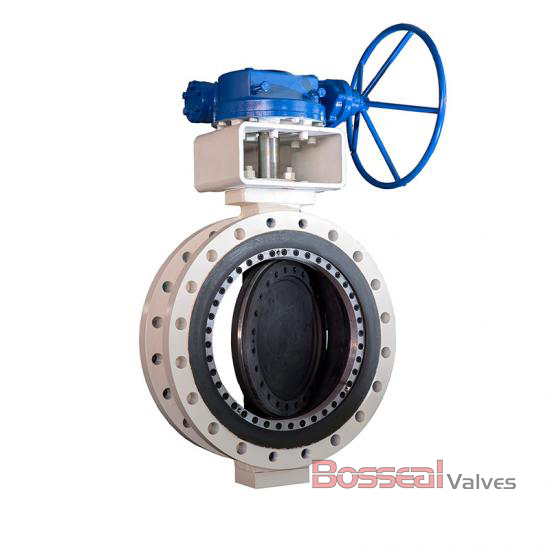

EN 593 ASTM A351 CF8 Butterfly Valve, CL 150 LB, 40 IN, SS

Key Specifications / Features

Model no. : 1862387

Our factory specializes in 40-inch double eccentric butterfly valves, crafted from ASTM A351 CF8 material and compliant with EN 593 and API 609 standards. Featuring flanged ends and a Monel K500 stem, these valves offer exceptional durability and reliability. The Bosseal valve advantages include zero leakage, low torque operation, and a long working life, making them ideal for various applications. With bi-directional sealing and fire-safe options, our double offset butterfly valves are designed to meet stringent industry requirements while minimizing emissions. Trust us for high-performance solutions tailored to your needs.

Detail Information

EN 593 Double Offset Butterfly Valve, CF8 Body, 40 Inch, 150 LB, Monel K500 Stem.

Valve Description

1862387 High-Performance Butterfly Valve
Structure: Double Offset, Double Eccentric
Design Standard: EN 593, API 609 Category B
Nominal Size: 40 Inch
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8, ASTM A890 4A, Titanium Alloy, ASTM A216 WCB, ASTM A890 5A, ASTM B148 C95800, ASTM A351 CF8M.
Seat: RPTFE, PPL
End Connection: Double Flanged
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB, Cl 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
