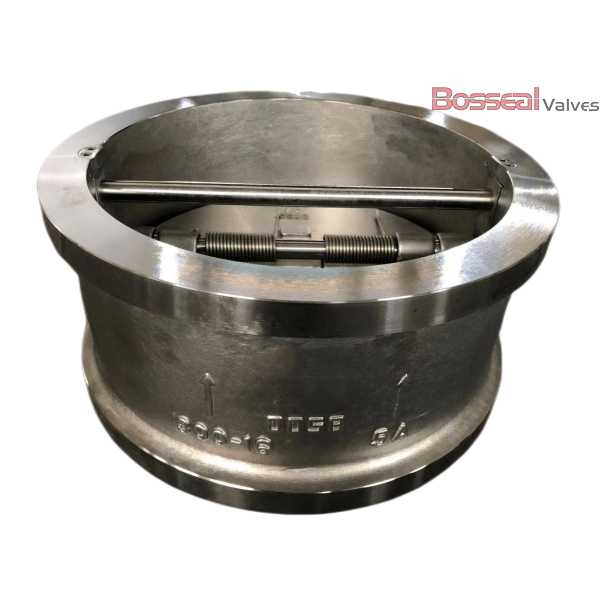

Duplex Stainless Steel Non-Return Valve, 8 IN, CL 1500, 5A

Name: Duplex Stainless Steel Non-Return Valve, 8 IN, CL 1500, 5A
SKU: cv-20240816-04
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : CV-20240816-04

As a premier fabricator of duplex stainless steel non-return valves from China, we specialize in dual plate structure valves designed for superior performance. Our 8-inch (DN200) valves are rated for 1500 LB and crafted from durable ASTM A890 5A duplex stainless steel, ensuring excellent corrosion resistance and strength. These valves offer the flexibility of optional soft and metal seat configurations to meet various application needs. Engineered for reliability and efficiency, our non-return valves are ideal for demanding industrial environments.

Request a quote

Tags:

ASTM A890 5A Check Valve

Duplex Stainless Steel Check Valve

8 Inch Check Valve

Detail Information

Wafer Dual Plate Check Valve, 8 Inch/DN200, Class 1500 LB, ASTM A890 5A, Wafer, Lug Ends.

Check Valve Specification

1842107 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 8 Inch, DN200
Nominal Class: Class 1500 LB, PN250
Body Material: ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
End Connection: Wafer, Lug, Double Flanged

Product Selection

Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ

Recommended Installation
