Duplex Stainless Steel Non-Return Valve, 24 IN, CL 300

Key Specifications / Features

Model no. : 1842051

As a renowned fabricator from China, we specialize in crafting Duplex Stainless Steel Non-Return Valves with a robust dual plate structure. Our 24-inch valves are designed to meet the Class 300 LB rating, ensuring durability and reliability in high-pressure applications. Crafted from ASTM A890 4A duplex stainless steel, they offer exceptional corrosion resistance and strength. We offer a choice between soft and metal seats to suit various industrial requirements, ensuring a perfect fit for your specific flow control needs. Our expertise in fabrication ensures precision and attention to detail in every valve we produce. Trust us for high-quality Duplex Stainless Steel Non-Return Valves that will exceed your expectations.

Detail Information

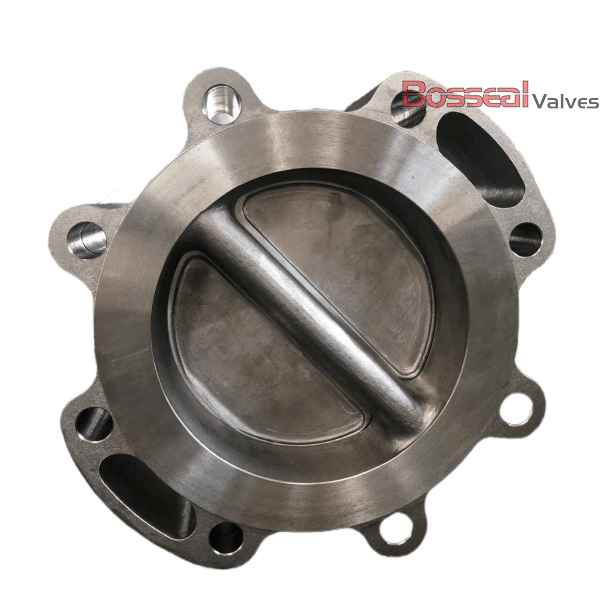

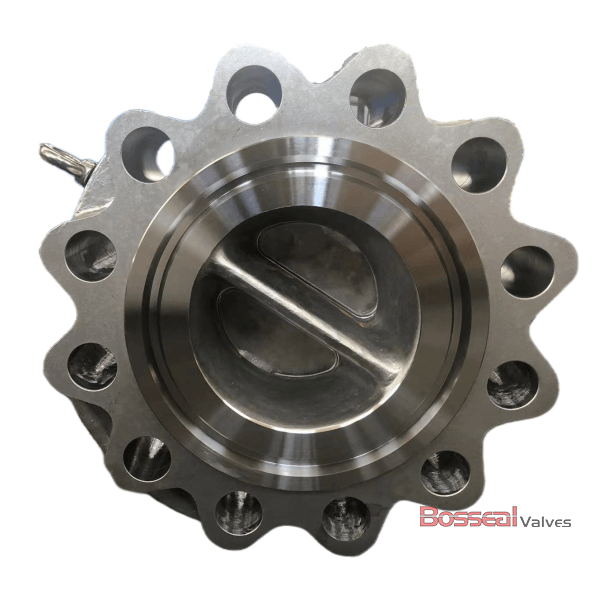

Wafer Dual Plate Check Valve, ASTM A890 4A, 24 Inch, Class 300 LB, Wafer, Lug Ends.

Check Valve Specification

1842051 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 24 Inch, DN600
Nominal Class: Class 300 LB
Body Material: ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A352 LCB, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Selection

Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150  - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
End Connection: Wafer, Lug, Flanged-RF, RTJ
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C

Other Wafer Check Valve Types Available

Singe Plate Wafer Check Valve
Singe Plate Wafer Check Valve

Thin Type Wafer Check Valve
Thin Type Wafer Check Valve

Titling Disc Wafer Check Valve
Titling Disc Wafer Check Valve


Piston Type(Lifting) Wafer Check Valve
Piston Type(Lifting) Wafer Check Valve
