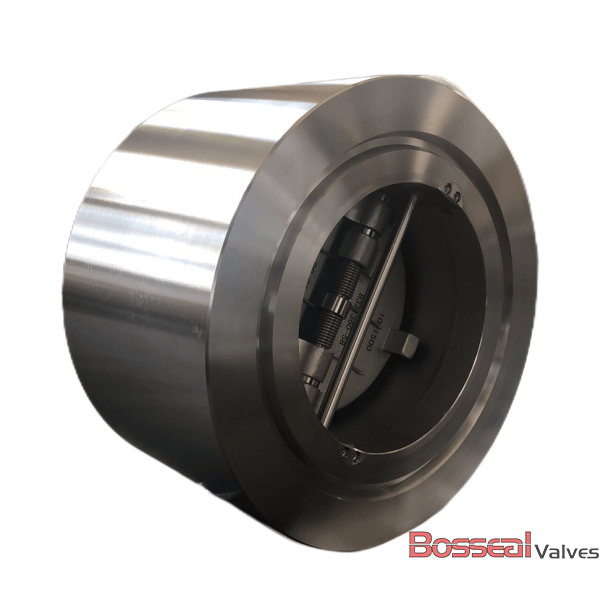

Dual Plate Non-Return Valve, A351 CF8M, API 6D, 4 IN, CL300

Key Specifications / Features

Model no. : 1842042

As a prominent API 6D dual plate non-return valve exporter from China, we offer high-quality valves made from stainless steel ASTM A351 CF8M. Our valves adhere to API 594 standards and are available in a 4-inch size with ANSI 300 pressure rating. Featuring a compact design, these valves come with wafer, lug, and RF end configurations to fit various installation requirements. The dual plate design ensures efficient flow control and space-saving installation, while the stainless steel construction provides excellent durability and resistance to corrosion. Ideal for a range of industrial applications, our valves deliver reliable performance and ease of maintenance, making them a superior choice for preventing backflow in pipelines.


Detail Information

API 6D Dual Plate Non-Return Valve, Check Valve, A351 CF8M, 4 Inch, Class 300 LB, Wafer/Lug/Flanged Ends.

Check Valve Description

1842042 Dual Plate Non-Return Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Body Material: ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 4A, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A890 5A, Titanium Alloy.
Nominal Size: 4 Inch, DN100
Nominal Class: 300 LB
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598


Product Offering

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat

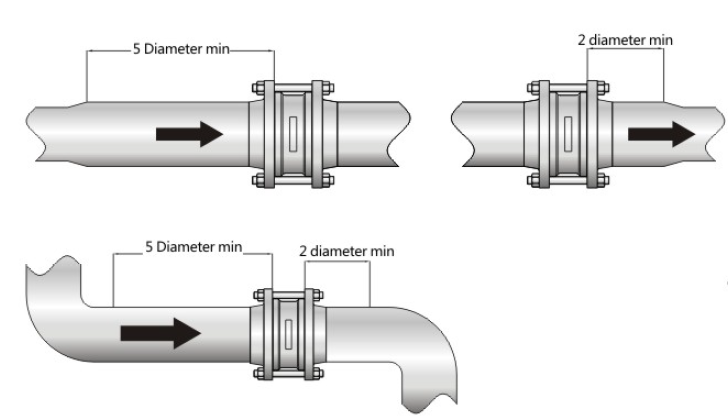

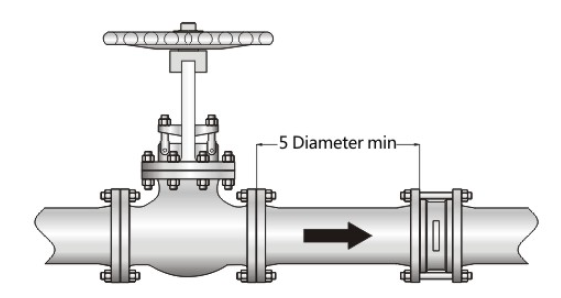

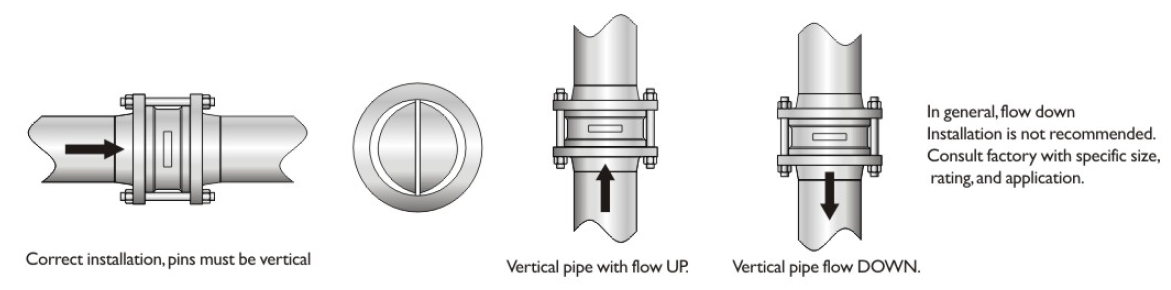

Recommended Installation

Recommended Installation

Recommended Installation



Recommended Installation


Recommended Installation

Nickname*:
E-mail*:
Rate*:
Comments*:

Next: 6 Inch Dual Check Valve, ASTM A890 4A, 300 LB, API 594, 6D

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

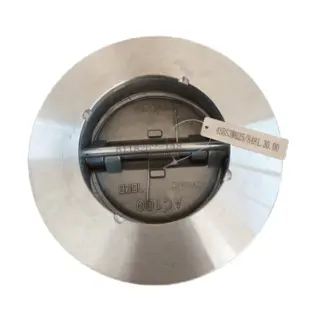

Similar Products
