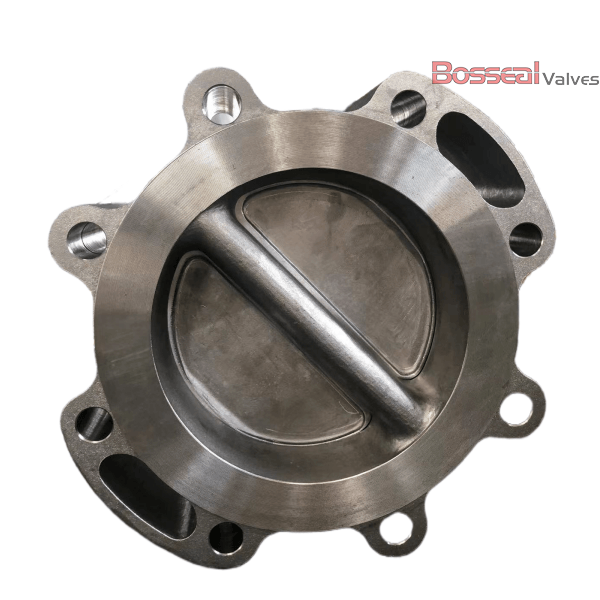

Dual Plate Non-Return Valve, A351 CF8, API 6D, 10 IN, CL1500

Name: Dual Plate Non-Return Valve, A351 CF8, API 6D, 10 IN, CL1500
SKU: cv-20240816-05
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : CV-20240816-05

As a leading exporter of API 6D dual plate non-return valves from China, we offer high-quality valves crafted from stainless steel ASTM A351 CF8. Complying with API 594 standards, our 10-inch valves are rated for ANSI 1500 and feature a compact design for efficient space utilization. Available with wafer, lug, and RF ends, these valves are engineered for reliable performance in various industrial applications. Our commitment to quality ensures durability and optimal functionality in every valve we produce.

Request a quote

Tags:

ASTM A351 CF8 Check Valve

Stainless Steel Check Valve

API 6D Check Valve

Detail Information

API 6D Dual Plate Non-Return Valve, ASTM A351 CF8, 10 Inch/DN250, Class 1500 LB, Wafer/Lug/Flanged Ends.

Check Valve Description

1842108 Dual Plate Non-Return Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate Check Valve
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Body Material: ASTM A351 CF8, ASTM A352 LCB, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, Titanium Alloy.
Nominal Size: 10 Inch, DN250
Nominal Class: 1500 LB, PN250
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Offering

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB

Next: 12 Inch Dual Check Valve, Titanium Alloy, 1500 LB, API 594

Previous: Stainless Steel Check Valve, 40 IN, CL 300 LB, ASTM A351 CF8

Similar Products

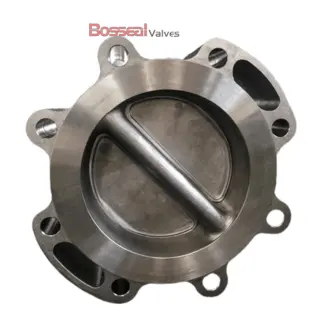

ASTM A351 CF8 Check Valve, 10 IN, CL 900 LB, API 6D, 594

API 6D Non-Return Valve, ASTM A351 CF8, 10 IN, CL2500

ASTM A182 F55 Dual Plate Check Valve, 10 IN, 1500 LB, API 594

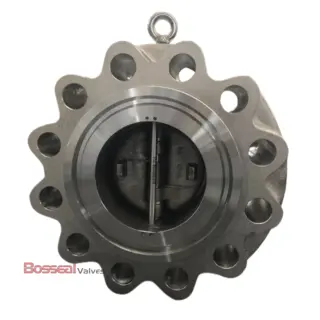

ASTM A351 CF8 Check Valve, 18 IN, CL 300, API 6D, API 594
