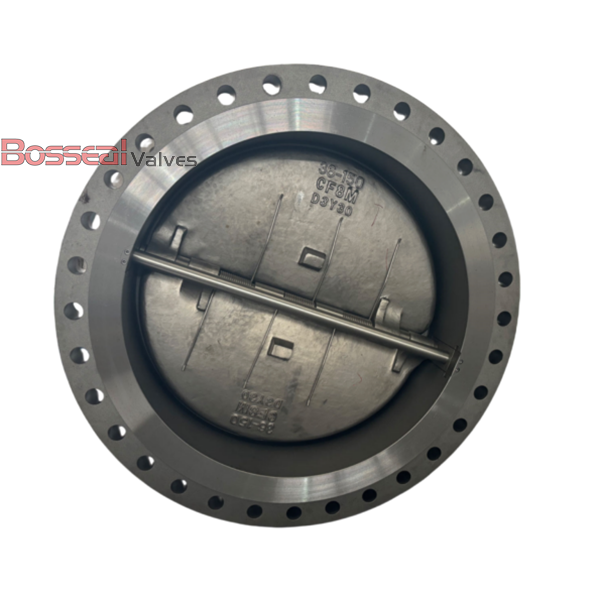

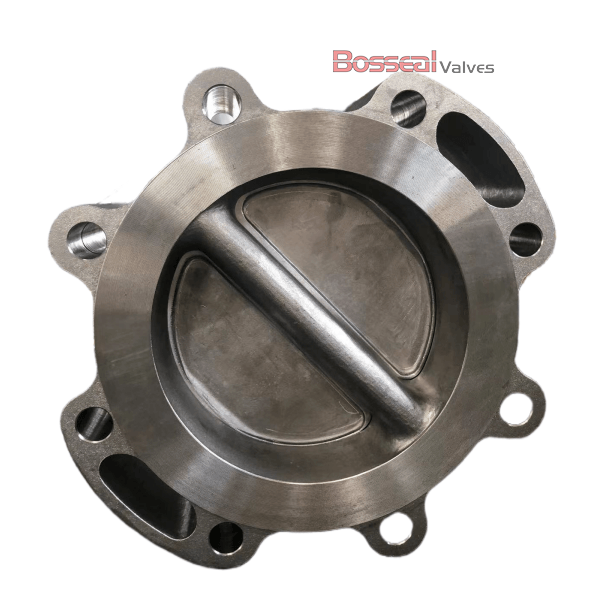

Dual Plate Non-Return Valve, A216 WCB, API 6D, 24 IN, CL600

Key Specifications / Features

Model no. : 1842072

As a top exporter of API 6D dual plate non-return valves, we specialize in delivering high-quality solutions crafted from carbon steel ASTM A216 WCB. Our 24-inch valves, compliant with API 594, are designed for ANSI 600, offering robust performance and reliability. Featuring a compact design, these valves are available with wafer, lug, and RF end connections, ensuring versatile installation options for various industrial applications. The dual plate structure provides efficient backflow prevention while maintaining a streamlined profile, reducing space and weight in your piping system. With a focus on precision engineering and quality assurance, we provide dependable non-return valves tailored to meet your specific needs. Choose us for superior valve solutions that you can trust.

Detail Information

API 6D Dual Plate Non-Return Valve, ASTM A216 WCB, 24 Inch/DN600, Class 600 LB, Wafer/Lug/Flanged Ends.

Check Valve Description

1842072 Dual Plate Non-Return Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design Check Valve, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A352 LCB, ASTM A351 CF8, Titanium Alloy.
Nominal Size: 24 Inch, DN600
Nominal Class: 600 LB, PN100
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Offering

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat

End Connections

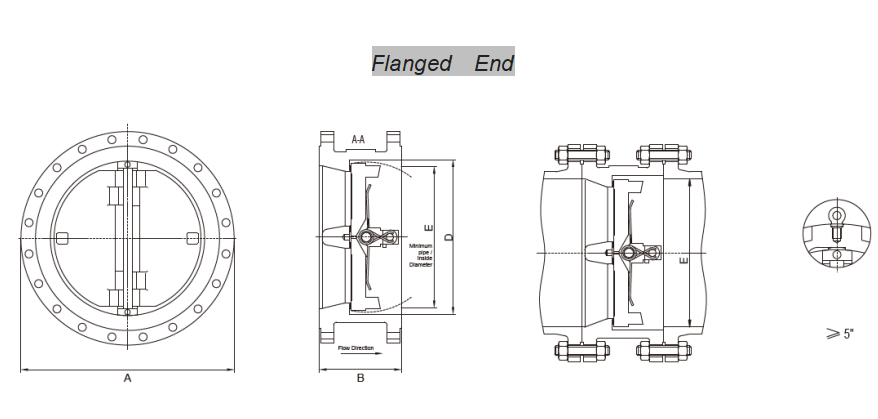

Flanged End

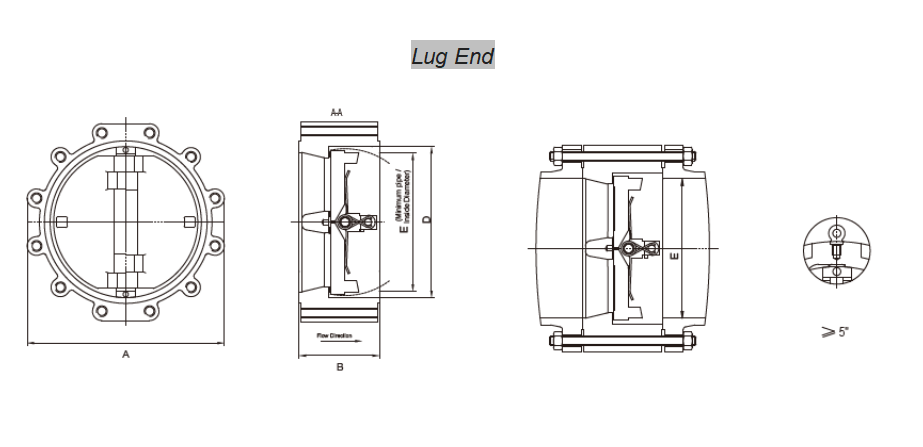

Lug End

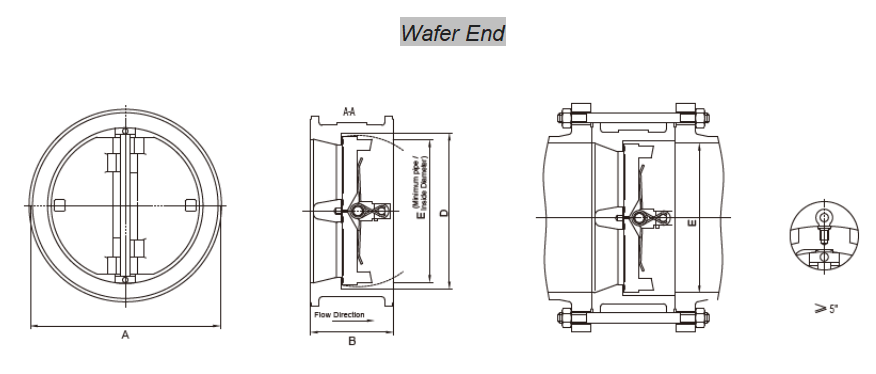

Wafer End
