Key Specifications / Features
As a trusted supplier from China, we offer double-offset butterfly valves designed to meet API 609 Category B standards. Featuring a double eccentric design, these 26-inch, 150 LB valves are constructed from high-quality titanium for enhanced durability and corrosion resistance. Equipped with a Monel K500 stem and lug ends, they provide reliable performance in demanding industrial applications. Engineered for precision and efficiency, our valves offer superior control and long service life, making them ideal for a wide range of critical operations.
API 609 Category B

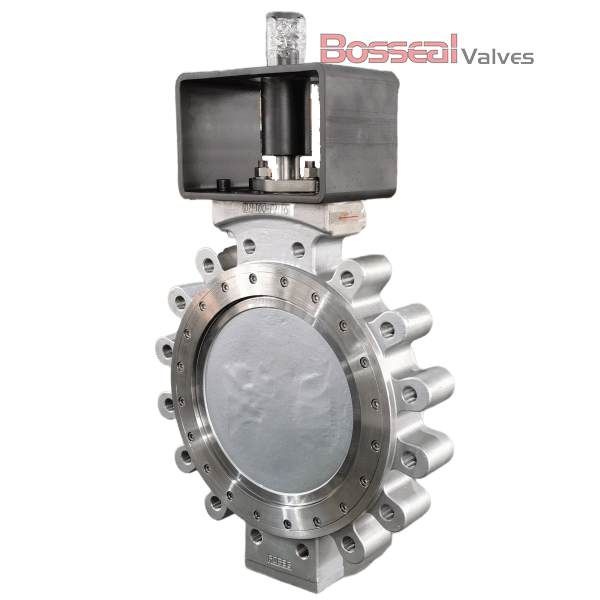

Butterfly Valve, Lug End, 26 Inch, 150 LB, Double Eccentric.
Valve Description
| 1862340 High-Performance Butterfly Valve |
| Design Standard: |
API 609 Category B, EN 593 |
| Nominal Size: |
26 Inch, DN650 |
| Nominal Class: |
Class 150 LB, PN16 |
| Structure: |
Double Offset, Double Eccentric |
| Body Material: |
Titanium, ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A. |
| Seat Type: |
Soft Seat |
| Face to Face: |
API 609, EN 593 |
| Seat: |
RPTFE, PPL |
| End Connection: |
Lug |
| Operation: |
Gear |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
|
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 IN - 48 IN (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
