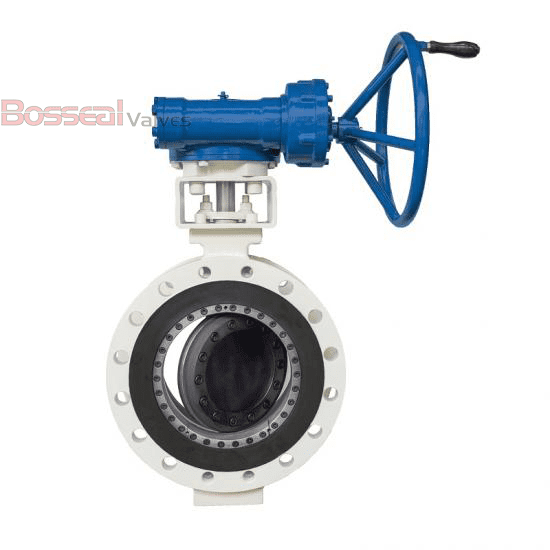

Double Offset Flanged Butterfly Valve, C95800, 36 IN, CL150

Key Specifications / Features

Model no. : 1862134

Our factory specializes in 36-inch high-performance butterfly valves that meet API 609 Category B and EN 593 standards. Made from ASTM B148 C95800 material, these valves feature a double eccentric design and a soft seat for excellent sealing. Rated for Class 150 LB, they come equipped with gear operation for smooth and precise control. Engineered for durability and reliability in demanding applications, our valves provide superior performance and efficiency. As a leading butterfly valve manufacturer in China, we are committed to delivering high-quality solutions tailored to your needs.

Detail Information

EN 593 High-Performance Butterfly Valve, API 609, 36 Inch, 150 LB, Double Flanged Ends.

Valve Description

Double Offset Butterfly Valve

The double offset butterfly valve is a versatile choice for pipeline isolation and regulation, particularly suited for applications requiring frequent open and close operations.


1862134 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, Titanium.
Nominal Size: 36 Inch
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Operation: Gear
Seat: RPTFE, PPL
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
End Connection: Double Flanged


Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
