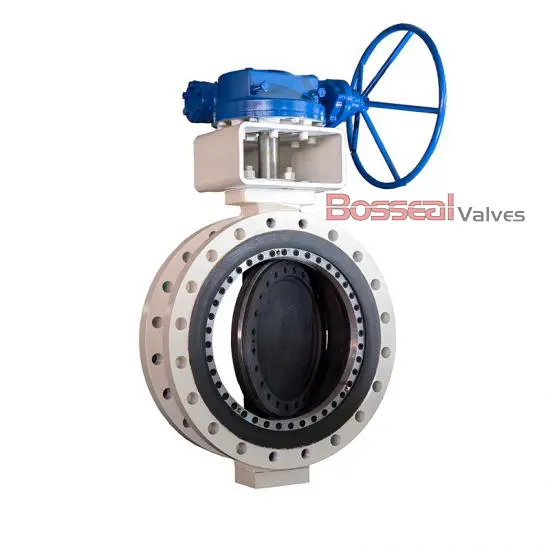

Double Offset CF8 Butterfly Valve, API 609, CL 300, 32IN

Key Specifications / Features

Model no. : 1862406

Our double-offset butterfly valves are engineered for exceptional performance and durability. Designed with a double eccentric configuration, they meet EN 593 and API 609 standards, ensuring precise control and tight sealing. With a 32-inch size, Class 300 LB pressure rating, and PN50 designation, these valves are ideal for demanding applications. Featuring a soft seat, Monel K500 stem, and replaceable seat design, they offer extended service life and lower operating torque, making them perfect for frequent operation with up to a million cycles of reliable performance.

Detail Information

Double Eccentric High-Performance Butterfly Valve, CF8 Body, 32-inch, RPTFE Seat.

Valve Description

1862406 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 32 Inch, DN800
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8, Titanium, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A.
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150-300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
