RPTFE Seated

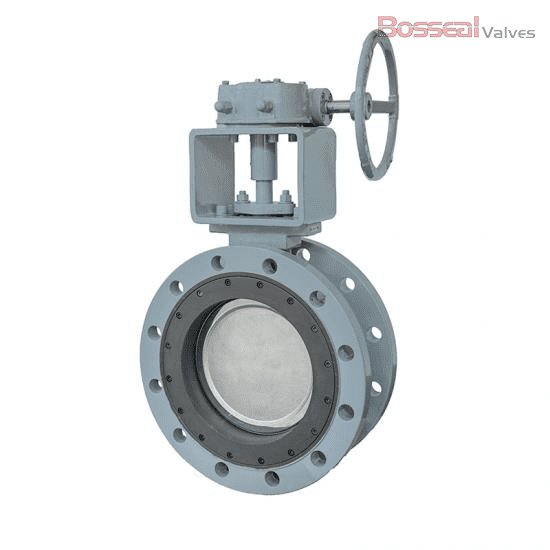

Butterfly Valve, Double Offset, 40 Inch, Class 300 LB, Gear Operation.
Valve Description
1862072 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 5A, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 4A, ASTM A351 CF8M, Titanium.
Nominal Size: 40 Inch
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Double Eccentric Butterfly Valve Introduction
The double eccentric butterfly valve offers notable cost and space savings, a broader size range, and faster operation compared to other valves. Its design reduces restriction and wear between the disc and seat, ensuring a longer cycle life and lower total cost of ownership. The two-offset design contributes to extended service life and lower torque, making it suitable for frequent operations. The Bosseal high-performance butterfly valve has successfully passed a million-cycle test.
