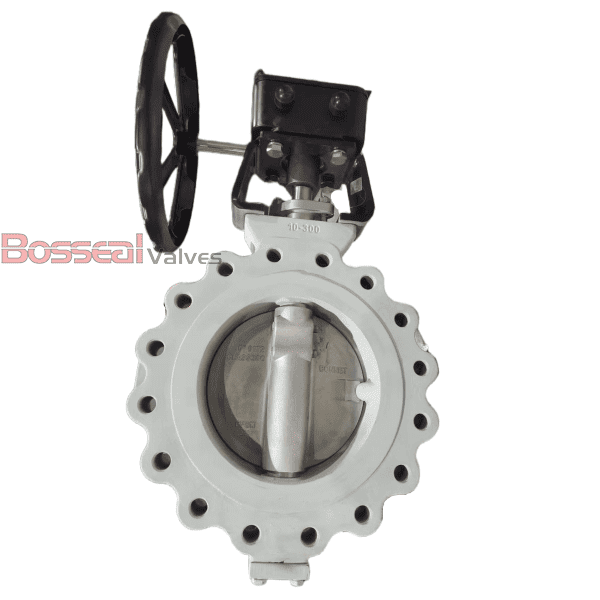

EN 593 High-Performance
Butterfly Valve, API 609, 40 Inch, 300 LB, Double Eccentric, Lug Ends.
Valve Description
1862114 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8M, ASTM B148 C95800, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, Titanium.
Nominal Size: 40 Inch
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Operation: Gear
Seat: RPTFE, PPL
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Normal Diameter: |
1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: |
Class 150 LB - 300 LB |
| Working Temperature: |
-26°C to +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged |
| Top Mounting: |
ISO 5211 Top Mounting Available |
| Operation Types: |
Lever, Gear, Pneumatic Actuator |
| Bosseal Valve advantages: |
Zero leakage, low torque operation, long service life, low emissions, bi-directional sealing, and fire-safe design. |
ISO 5211 Top Mounting
Different End Connections Available
