Double Flanged Butterfly Valve, A890 4A, 2-1/2 IN, 150 LB

Name: Double Flanged Butterfly Valve, A890 4A, 2-1/2 IN, 150 LB
SKU: 1862118
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1862118

As a fabricator of double offset butterfly valves, we produce high-performance valves that meet API 609 and EN 593 standards. Made from ASTM A890 4A duplex stainless steel, our 2-1/2 inch, 150 LB valves are designed for durability and corrosion resistance in demanding environments. Featuring a double flanged design, 17-4PH stem, and RPTFE seat, these valves offer excellent sealing performance and reliable operation. Built for long-term use, they are ideal for a wide range of industrial applications. We provide robust, high-quality solutions to meet your needs.

Request a quote

Tags:

2-1/2 Inch Butterfly Valve

Class 300 LB Butterfly Valve

Double Offset Butterfly Valves

Detail Information

EN 593 High-Performance Butterfly Valve, Double Offset, RPTFE Seat, 2-1/2 Inch/DN65, 150 LB, Lever Operation.

Valve Description

1862118 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged

Next: ASTM A216 WCB Butterfly Valve, RPTFE Seat, 3 IN, CL 150 LB

Previous: High-Performance Butterfly Valve, CF8M, API 609, 2 IN, CL150

Similar Products

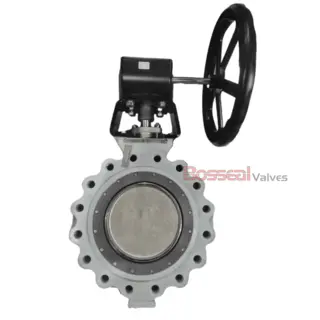

High Performance Butterfly Valve, ASTM A890 4A, 36 IN, 300 LB

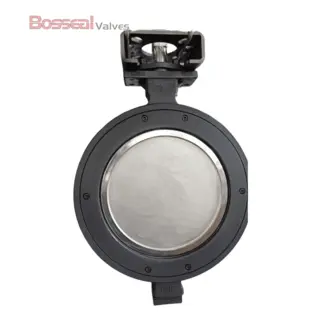

ASTM A890 4A Butterfly Valve, 4 Inch, 300 LB, Double Offset
