Key Specifications / Features
As a leading supplier of high-performance butterfly valves, we offer double eccentric valves crafted from titanium, designed to meet API 609 Category B standards. These 26-inch, 150 LB valves feature a robust 17-4PH stem and a soft seat, ensuring excellent sealing performance and durability. The double flanged ends provide secure installation, making them suitable for demanding industrial applications. With a focus on reliability and precision, our high-performance butterfly valves deliver efficient operation in critical service environments. Trust us for top-quality valve solutions tailored to your needs.
Double Eccentric

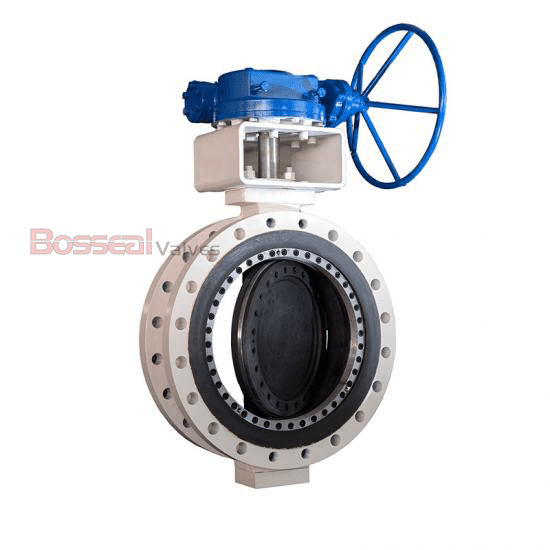

Butterfly Valve, API 609 Cat B, Titanium Body, 26 Inch/DN650, 150 LB, Gear Operation.
Valve Description
A double offset butterfly valve is extensively used in pipelines for both isolation and regulation purposes, particularly in applications that require frequent opening and closing. Its design ensures efficient operation and reliable performance in such demanding conditions.
| 1862130 High-Performance Butterfly Valve |
| Structure: |
Double Offset, Double Eccentric |
| Design Standard: |
API 609 Category B, EN 593 |
| Nominal Size: |
26 Inch, DN650 |
| Nominal Class: |
Class 150 LB, PN20 |
| Body Material: |
Titanium, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 5A. |
| Seat Type: |
Soft Seat |
| Face to Face: |
API 609, EN 593 |
| Operation: |
Gear |
| Seat: |
RPTFE, PPL |
| End Connection: |
Double Flanged |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
|
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
