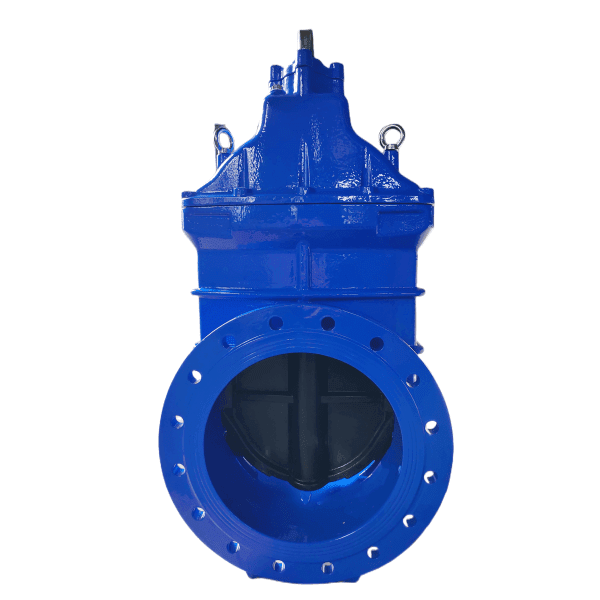

DIN F4 Resilient Gate Valve, DN350, PN10, DIN 3352, GGG50, RF

Key Specifications / Features

Model no. : 14GS1RG50

Resilient Gate Valve Manufacturer - DN350, PN10, 14 Inch, GGG50 Body, DIN 3352 Part 4, EPDM lined, Handwheel, Resilient Seat, DIN 3202 F4, Flanged Ends. Discover high-quality resilient gate valves from a trusted manufacturer. Our DN350 gate valve is designed for PN10 pressure rating and has a size of 14 inches. The valve body is made of GGG50 material, conforming to DIN 3352 Part 4 standards. It features an EPDM lining for enhanced durability and corrosion resistance. With a convenient handwheel, operating the valve is effortless. The resilient seat ensures a reliable and tight seal, meeting DIN 3202 F4 specifications. The valve is equipped with flanged ends, making installation a breeze. Choose our resilient gate valve for dependable performance in various industrial applications.

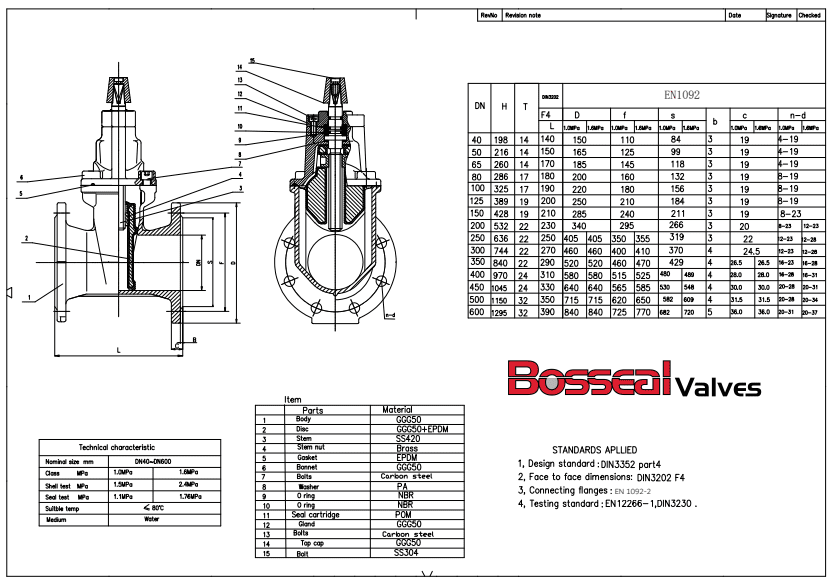

Detail Information

DIN F4 Resilient Gate Valve, DN350, PN10, Flanged, GGG50 Body, EPDM lined, Handwheel

Valve Description:
1871001 Resilient Gate Valve 14GS1RG50
Design Standard: DIN 3352 Part 4
Structure: Resilient Seat
Nominal size: DN350
Nominal class: PN10
End Connection: Flanged End
Operation: /
Body Material: GGG50
Trim Material: GGG5-+EPDM
Face to face: DIN 3202 F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap

Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: PN10, PN16
End connection: Flanged, Threaded
Working temperature: -29℃ - +80℃
Suitable Service: Water
