36-inch Trunnion
Ball Valve, ASTM A350 LF2 Body, DN900, CL 2500, Side Entry, RTJ.
Ball Valve Description
1811193 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Nominal Size: 36 Inch, DN900
Nominal Class: 2500 LB, PN420
Operation: Lever/Gear
Test and Inspection: API 598, API 6D
Body Material: ASTM A105N or ASTM A350 LF2
Face to Face: ASME B16.10
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Bore Type: Full Bore or Reduced Bore
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Key Features
1. Double Block & Bleed (DBB): Provides two barriers for safe venting or bleeding of pressure.
2. Anti-Static Device: Prevents static buildup, enhancing safety in hazardous environments.
3. Low Emission Compliance (Optional): Minimizes fugitive emissions for sensitive applications.
4. Fire-Safe Design: Maintains functionality during and after fire exposure.
5. Emergency Sealant Injection: Enables sealing material injection during leakage emergencies.
6. Anti-Blowout Stem: Prevents stem ejection under pressure for added safety.
7. Double Isolation & Bleed (DIB) Functionality (Optional): Enhances isolation with two seating surfaces for improved safety.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Alloy Steel |
| Normal Diameter: |
1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: |
Class 150 LB - 2500 LB |
| Working Temperature: |
-26°C - +150°C |
| End connection: |
RF, RTJ, BW, HUB |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Body Structures: |
End Entry, Top Entry(easy for on-line maintenance) |
| Body Types: |
2pc split body, 3pcs split body |

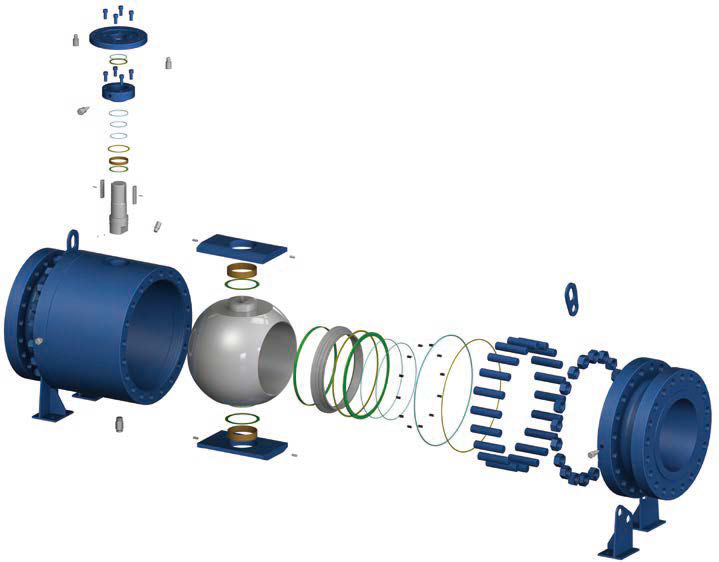

3pcs Forged Body Side Entry Ball Valve
