Key Specifications / Features

Model no. : 1811135

Discover high-quality Class 900 LB ball valves at our factory, available in 2-1/2 Inch (DN65) size with a pressure rating of PN150. Crafted to meet API 6D standards, these valves are made from durable materials including ASTM A105N and ASTM A350 LF2. Trunnion mounted for stability, our 3-piece valves feature gear operation and RF connections, ensuring reliable performance in demanding applications.


Detail Information

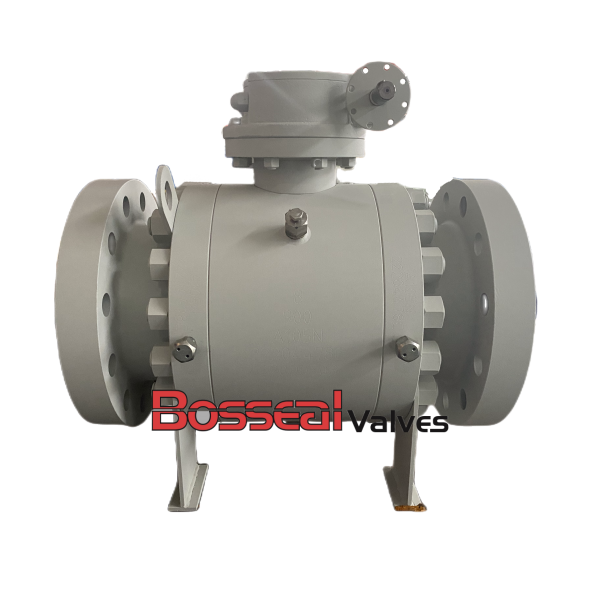

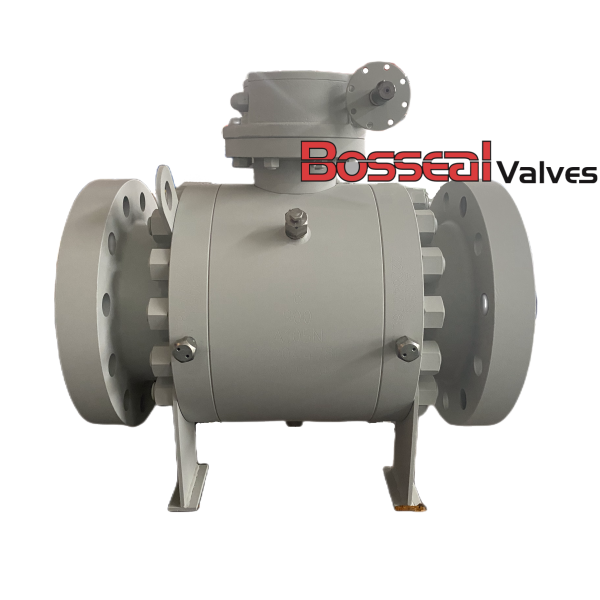

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 2-1/2 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation

Valve Description:
1811135 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2-1/2 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

Next: ASTM A105N Ball Valve, 3 Inch, 900 LB, API 6D, BB, RTJ

Previous: Trunnion Mounted Ball Valve, API 6D, 16IN, 600LB, A105N, RF
