Key Specifications / Features
Crafted by a reputable manufacturer, this Class 800 LB Gate Valve is constructed from ASTM A350 LF2 material, boasting a size of 2 inches (DN50) and a pressure rating of PN130. Compliant with ASME B16.34 and API 602 standards, it features a robust ASTM A182 F6A+STL.8 Trim. Designed with a bolted bonnet, OS & Y configuration, and a regular bore, this valve is equipped with a convenient handwheel for easy operation. Suitable for various applications, it ensures reliable performance in demanding environments. Secure yours today for dependable fluid control.
Detail Information

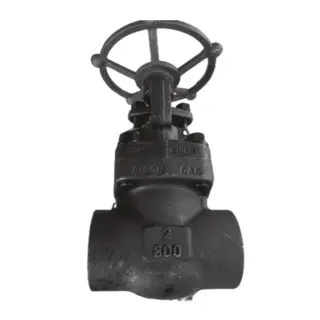

2 INCH, 800 LB, Forged Gate Valve, API 602, SW, LF2 body and trim 8, Handwheel
Valve Description:
1851032 API 602 Forged Gate Valve 2G8SLF208
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A350 LF2
Trim Material: F6A+STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
