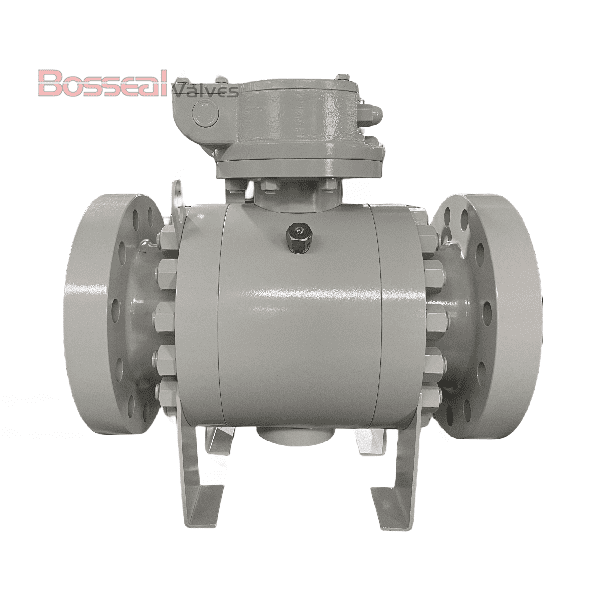

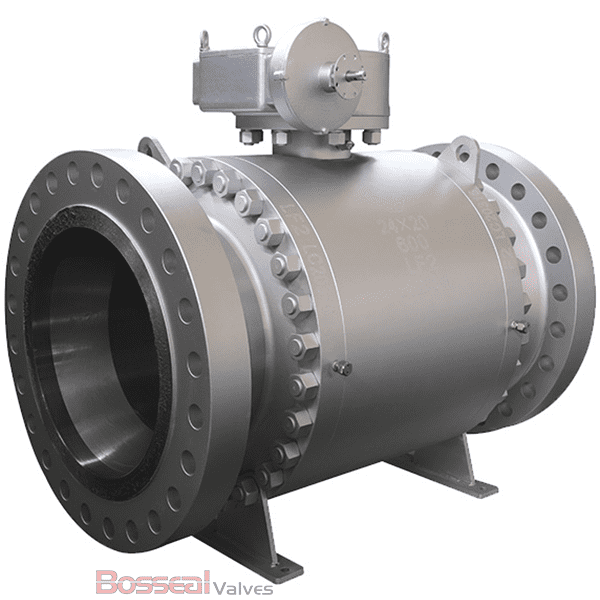

Class 2500 LB Trunnion Ball Valve, A350 LF2, 26 IN, BS 5351

Key Specifications / Features

Model no. : 1811189

We are a trusted supplier of bolted bonnet ball valves from China, designed to meet BS 5351 and API 6D standards. Our valves feature a robust 3-piece body construction, a substantial 26-inch size (DN650), and a Class 2500 LB rating with a PN420 pressure rating. Equipped with double block and bleed (DBB) functionality and RTJ flanged connections, these valves offer superior sealing and reliability. Ideal for high-pressure applications, our bolted bonnet ball valves ensure exceptional performance and durability.

Detail Information

BS 5351 Trunnion Mounted Ball Valve, 26 Inch/DN650, CL 2500 LB, Bolted Bonnet, RTJ Flanged End.

Valve Description

1811189 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Bore Type: Full Bore or Reduced Bore
Nominal Size: 26 Inch, DN650
Nominal Class: CL 2500 LB, PN420
Body Material: ASTM A105N or ASTM A350 LF2
Operation: Lever/Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub
Working Temperature: -26°C to +150°C
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
