Class 200 LB Bronze Gate Valves, MSS SP-80, 3/8 IN, C83600

Name: Class 200 LB Bronze Gate Valves, MSS SP-80, 3/8 IN, C83600
SKU: 1876022
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876022

As a reliable ASTM B62 C83600 bronze gate valve supplier in China, we offer valves designed to MSS SP-80 standards for dependable performance. Our 3/8 inch (DN10) gate valves are rated for Class 200 LB and feature a threaded bonnet and non-rising stem for compact, efficient operation. With a standard bore design, these valves provide reliable flow control in a variety of industrial applications. Built from high-quality bronze, our gate valves ensure long-lasting durability and performance in demanding environments.

Request a quote

Tags:

Class 200 LB Gate Valve

Bronze Gate Valve

MSS SP-80 Gate Valve

Detail Information

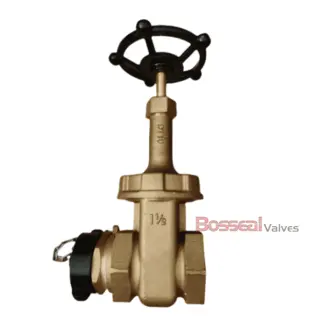

MSS SP-80 Bronze Gate Valves, ASTM B62 C83600, 3/8 Inch, Class 200 LB, Threaded Bonnet.

Valve Description:

1876022 Gate Valve
Bore Type:	Standard Bore
Structure:	Threaded, Union Bonnet
Design Standard:	MSS SP-80
Size Range:	3/8 Inch, DN10
Class Rating:	Class 200 LB
Body Material:	ASTM B62 C83600
Test and Inspection:	MSS SP-80
Trim Material:	ASTM B62 C83600
Face to Face:	Manufacturer Standard
End Connection:	Threaded ASME B1.20.1
Operation:	Handwheel

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing under MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4 Inch - 3 Inch (DN6 – DN80)
Pressure Range: Class 125 LBs, 150 LBs, 200 LBs, 300 LBs
Working Temperature: -20°C to +150°C
End Connection: Threaded
Operation: Handwheel
