Key Specifications / Features
Looking for a reliable Class 1500 LB ball valve provider? Our 2-inch valve, with specifications DN50, PN250, ASTM A105N, ASTM A350 LF2, API 6D, BS 5351, is trunnion mounted with RTJ and DEVLON seat, ensuring superior performance. Operated with gear mechanism, our valve guarantees precision and durability for your industrial needs.
Detail Information

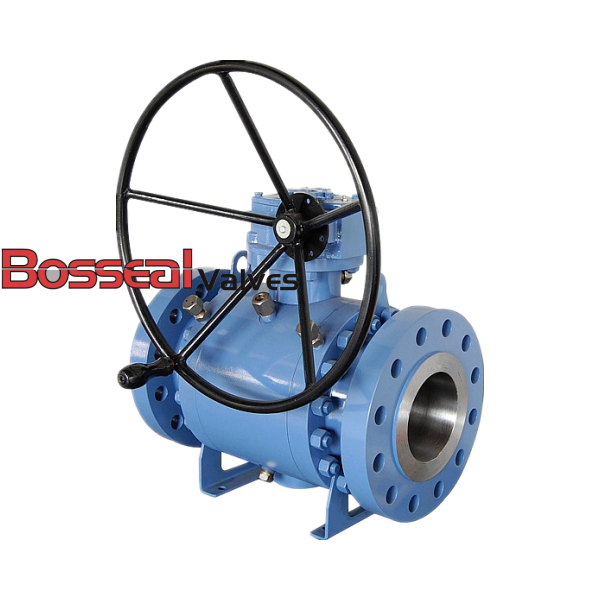

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 2 INCH, 1500 LB, RTJ, DEVLON Seat, Gear Operation
Valve Description:
1811155 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 1500 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Next: ASTM A350 LF2 Bolted Bonnet Ball Valve, 2-1/2 Inch, 1500 LB

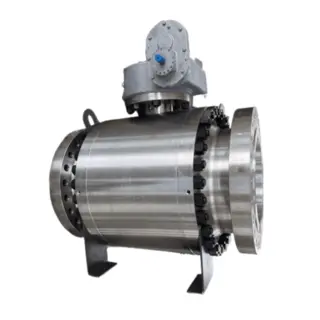

Previous: Trunnion Mounted Ball Valve, API 6D, 16IN, 600LB, A105N, RF
