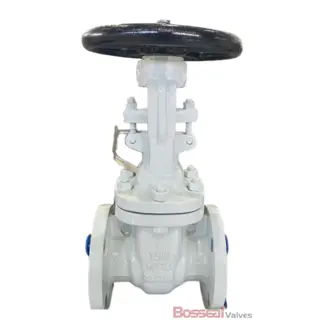

Carbon Steel Wedge Gate Valve, WCB, Trim 8, 18 IN, CL 600

Key Specifications / Features

Model no. : 1821095

As a leading gate valve manufacturer in China, we specialize in ASTM A216 WCB gate valves designed to meet API 600 standards. Our 18-inch (DN450) gate valves feature OS&Y construction, a pressure seal bonnet, and RF flanged ends, ensuring robust performance in high-pressure applications. Available in ANSI Class 600, these valves are built with precision and durability, ideal for a wide range of industrial uses. With stainless steel components and superior craftsmanship, we deliver reliable, high-performance gate valves to meet your project requirements.

Detail Information

OS&Y Gate Valve, 18 Inch, ASTM A216 WCB, API 600, DN450, Class 600 LB, Flexible Wedge, RF Flanged.

Valve Description

1821095 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A216 WCB, ASTM A890 4A, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A890 5A, ASTM B148 C95800.
Nominal Size: 18 Inch, DN450
Nominal Class: CL 600 LB, PN100
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
End Connection: RF Flanged
Face to Face: ASME B16.10
Test and Inspection: API 598

Key Features

1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF, RTJ, BW
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal.
