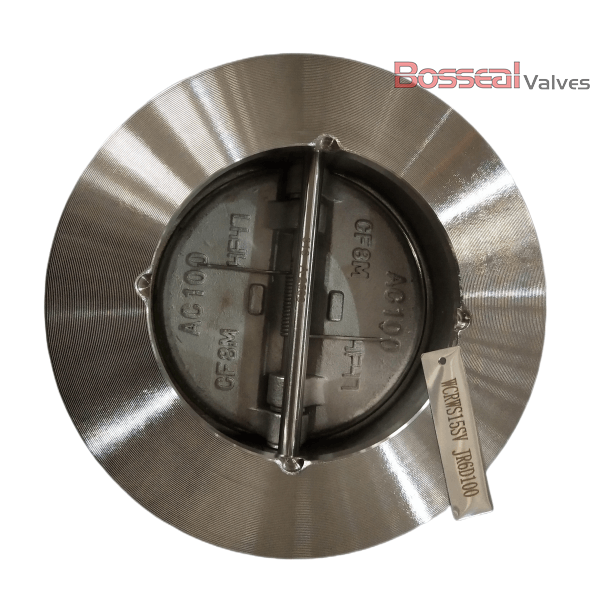

Carbon Steel Non-Return Valve, 2-1/2 IN, CL600, A352 LCB

Name: Carbon Steel Non-Return Valve, 2-1/2 IN, CL600, A352 LCB
SKU: 1842061
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1842061

As a leading fabricator of carbon steel non-return valves from China, we offer dual plate valves in a 2-1/2 inch size, DN65, with a Class 600 LB rating. Constructed from ASTM A352 LCB carbon steel, these valves come with optional soft or metal seats. The design of the plates ensures a lightweight structure with optimized flow efficiency, minimal pressure loss, and rapid operation. The valve’s construction enhances sealing performance even under low-pressure conditions, making it an excellent choice for various applications requiring reliable and efficient performance.

Request a quote

Tags:

ASTM A352 LCB Check Valve

Carbon Steel Check Valve

2-1/2 Inch Check Valve

Detail Information

Wafer Dual Plate Check Valve, 2-1/2 Inch, Class 600 LB, ASTM A352 LCB, Wafer, Lug Ends.

Check Valve Specification

1842061 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 600 LB, PN100
Body Material: ASTM A352 LCB, ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Key Features: Independent Spring, Optional Soft and Metal Seat, Compact Design, Unique Slim Plate Design.
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Selection

Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Operation: Not Applicable (Manual or actuated available for special request)
Working Temperature: -196°C to +450°C
End Connection: Wafer, Lug, Flanged-RF, RTJ

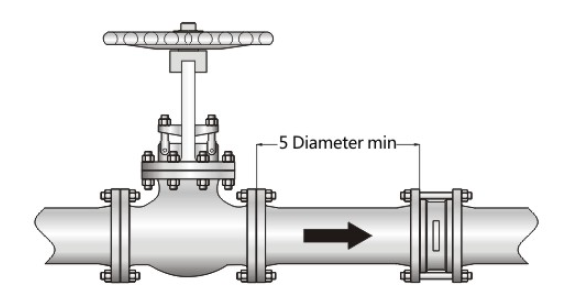

Recommended Installation

Next: Dual Plate Non-Return Valve, B148 C95800, API 6D, 3IN, CL600

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Similar Products

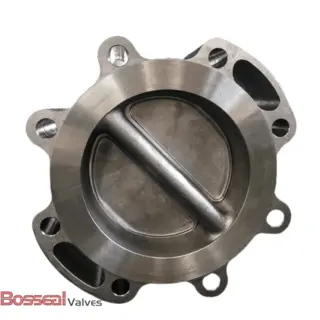

ASTM A352 LCB Non-Return Valve, 2-1/2 Inch, 300 LB, API 594

ASTM A352 LCB Check Valve, 2-1/2 IN, CL 1500 LB, API 594, 6D

2-1/2 Inch Swing Check Valves, 300 LB, A352 LCB, API 594, RF

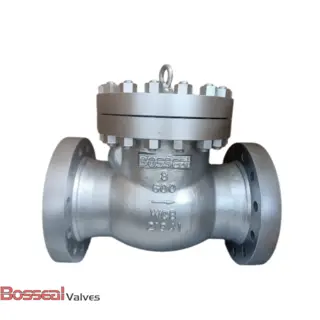

ASTM A995 5A Swing Check Valve, 600 LB, 2-1/2 Inch, Flanged
