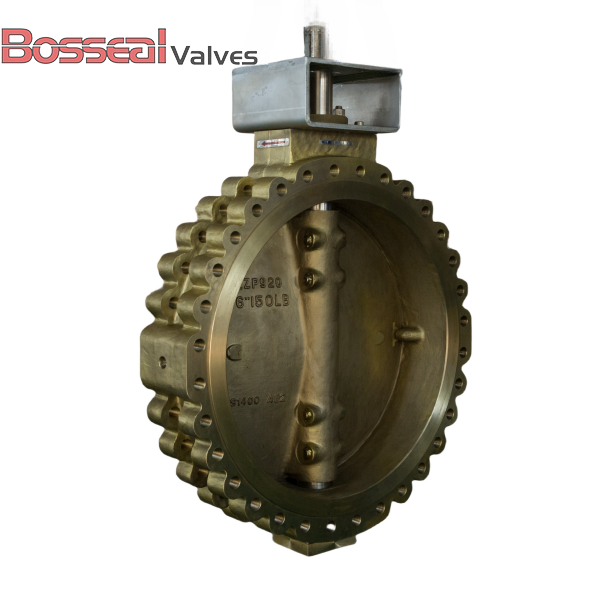

BS EN 593 Butterfly Valve, ASTM B148 C95800, 20 Inch, CL150

Key Specifications / Features

Model no. : BTV-187302012

We are a reliable supplier of BS EN 593-compliant butterfly valves designed for demanding industrial and marine applications. Manufactured with durable aluminium bronze ASTM B148 C95800, these 20-inch valves are rated for Class 150 LB service. Featuring a high-strength Monel K500 stem and a matching C95800 disc, they offer excellent corrosion resistance and performance in harsh environments. Available with lever or gear operation for smooth and precise control, our butterfly valves ensure long-lasting reliability and efficiency in a wide range of fluid handling systems.

Detail Information

Valve Description:
187302012 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 20 Inch
Nominal Class: 150 LB
Body Material: ASTM B148 C95800
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Operation: Lever/Gear
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service


Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2-48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
