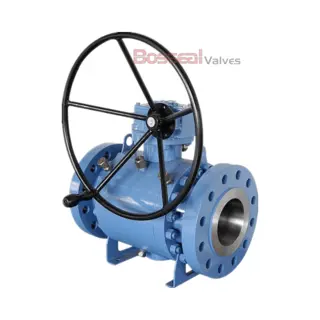

BS 5351 Ball Valve, ASTM A350 LF2, 28 IN, CL 1500 LB, BB

Key Specifications / Features

Model no. : 1811169

As a leading bolted bonnet ball valve supplier from China, we offer high-peRTJormance valves designed to meet BS 5351 and API 6D standards. Our 3-piece body ball valves are available in sizes up to 28 inches (DN700) and rated for Class 1500 LB (PN250). Featuring Double Block & Bleed functionality for enhanced safety, these valves are equipped with RTJ flanged ends for secure and reliable connections. Built for demanding applications, our ball valves ensure superior peRTJormance and durability, making them ideal for high-pressure environments.

Detail Information

BS 5351 Trunnion Mounted Ball Valve, 28 Inch, 1500 LB, Bolted Bonnet, RTJ Flanged End.

Valve Description

1811169 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 28 Inch, DN700
Nominal class: CL 1500 LB, PN250
Body Material: ASTM A105N or ASTM A350 LF2
Bore Type: Full Bore or Reduced Bore
Operation: Lever/Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), DIB (Optional).

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub
Working Temperature: -26°C to +150°C
