Key Specifications / Features

Model no. : 1811092

Discover a high-quality BS 5351 3-PC Ball Valve, maker specified, in 2-inch size, 300 LB pressure rating, DN50, PN50, featuring a trunnion mounted design conforming to API 6D standards. Crafted from ASTM A105N and ASTM A350 LF2 materials, this valve boasts a bolted bonnet and RF end connection.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 2 INCH, 300 LB, RF, RPTFE seat

Valve Description:
1811092 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Lever
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

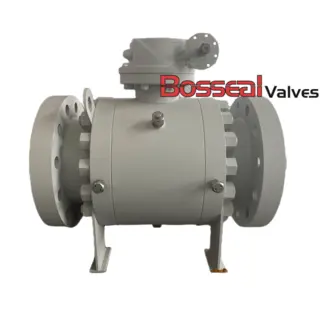

Next: ASTM A105N 3PC Ball Valve, BS 5351, 2-1/2 Inch, 300 LB, RF
