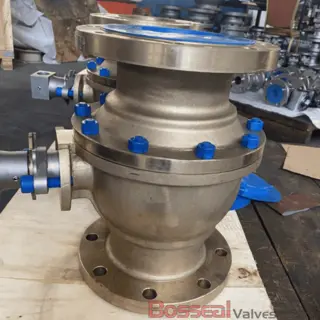

Bronze 2-Piece Ball Valve, BS 5351, C95800, 32 IN, CL300, RF

Name: Bronze 2-Piece Ball Valve, BS 5351, C95800, 32 IN, CL300, RF
SKU: bv-187301038
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : BV-187301038

We are a reputable aluminum bronze ball valve factory in China, specializing in high-quality valves built to BS 5351 standards. Our 32-inch, Class 300 LB ball valve features a durable 2-piece body and is constructed from ASTM B148 C95800 aluminum bronze, offering exceptional corrosion resistance for marine and industrial applications. Designed for full bore flow, it provides efficient and reliable performance. Available with flat face (FF) or raised face (RF) flanged ends, this valve ensures optimal sealing and long-lasting durability. As a trusted manufacturer, we deliver robust, high-performance ball valves for demanding environments.

Request a quote

Tags:

Aluminum bronze Ball Valve

2 Piece Ball Valve

ASTM B148 C95800 Ball Valve

Detail Information

Valve Description:
187301038 Aluminum Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Body Material: ASTM B148 C95800
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 32 Inch
Nominal Class: Class 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block & Bleed(DBB), Anti-Static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
