Bonnetless Y-pattern Globe Valve, A182 F91, 1-1/2 IN, 4500 LB

Name: Bonnetless Y-pattern Globe Valve, A182 F91, 1-1/2 IN, 4500 LB
SKU: 1852063
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1852063

As a prominent Y-pattern Globe Valve factory in China, we specialize in manufacturing high-quality valves crafted from ASTM A182 F91. This 1-1/2 inch valve, with a DN40 size and a Class 4500 LB pressure rating, meets ASME B16.34 and API 602 standards, ensuring exceptional performance and durability. The bonnetless design reduces maintenance needs and enhances reliability. It features an OS&Y (Outside Screw & Yoke) configuration and butt weld (BW) ends for secure connections. The rising stem with handwheel facilitates precise and effortless operation, making it ideal for demanding applications. This valve is designed to deliver robust performance and efficient flow control in high-pressure and high-temperature environments, providing a reliable solution for various industrial needs.

Request a quote

Tags:

Bonnetless Globe Valve

Y Pattern Globe Valve

Class 4500 LB Globe Valve

Detail Information

1-1/2 Inch Y-pattren Globe Valve, ASME B16.34, DN40, CL 4500 LB, A182 F91 Body, BW Ends.

Valve Description:

1852063 Globe Valve
Design Standard: ASME B16.34, API 602
Body Material: ASTM A182 F91, ASTM A182 F11, ASTM A182 F22, ASTM A182 F316, ASTM A105N
Nominal Size: 1-1/2 Inch, DN40
Nominal Class: Class 4500 LB
Structure: Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet, Bonnetless
Bore Type: Reduced Bore
Face to Face: MFG'S
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Applications: Chemical Processing, HVAC Systems, Oil and Gas Industry.

Key Features:

1. Rising Stem with Handwheel: For precise and easy operation.
2. Interchangeable Discs: Options include swivel, plug, or needle disc for versatile applications.
3. Y-Pattern Design: Optimizes flow management and reduces pressure drop.
4. OS&Y Configuration: Outside Screw & Yoke design for reliable performance.
5. Live Load Packing: Ensures superior sealing and ease of maintenance.
6. Backseat Feature: Provides additional safety and protection.
7. Compact and Durable: Engineered to withstand high-temperature and high-pressure conditions.

Product Portfolio:

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Operation: Manual or Actuated
Working Temperature: -29°C to +525°C
End Connection: BW/SW/NPT

Next: Pressure Seal Bonnet Y Globe Valve, ASTM A105N, 2 IN, CL4500

Previous: Welded Bonnet Y Globe Valve, A182 F11, ANSI 4500, 1 IN, NPT

Similar Products

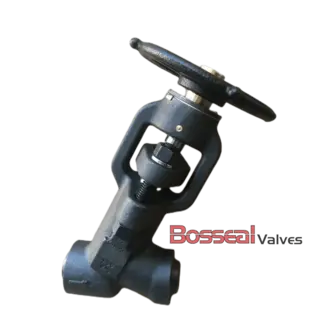

Bonnetless Y-pattern Globe Valve, 1-1/2 IN, 2500LB, A182 F11
