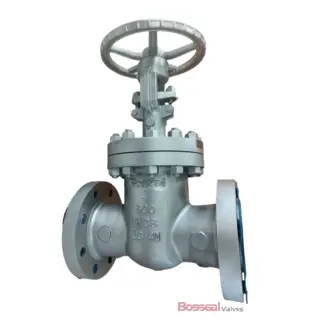

Bolted Bonnet Gate Valve, OS&Y, ASTM A890 5A, API 600, 8 IN

Key Specifications / Features

Model no. : 1821111

We are a trusted supplier of 8-inch gate valves, crafted from high-quality duplex stainless steel (ASTM A890 5A) to meet API 600 standards. Our DN200 valves are rated for 900 LB pressure and feature an OS&Y design with a flexible wedge for reliable operation. Equipped with a bolted bonnet and RTJ flanged ends, these valves ensure durability and ease of maintenance. As a leading manufacturer in China, we deliver superior products that meet rigorous industry standards and performance requirements.

Detail Information

Bolted Bonnet Gate Valve, ASTM A890 5A, 8 Inch/DN200, 900 LB, OS&Y, RTJ Flanged.

Valve Description

1821111 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 8 Inch, DN200
Nominal Class: Class 900 LB, PN150
Body Material: ASTM A890 5A, ASTM B148 C95800, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A.
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RTJ Flanged
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Operation: Handwheel/Gear/Motor
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
