Bolted Bonnet Gate Valve, A352 LCB, 14 IN, CL150, API 600

Key Specifications / Features

Model no. : 1821051

Our 14-inch gate valves, made from robust carbon steel ASTM A352 LCB, are designed for high performance and durability. With a DN350 size and Class 150 LB pressure rating, these valves feature a bolted bonnet for a secure, leak-proof seal. The RF flanged connections ensure easy installation, while the rising stem provides clear position indication. For ease of operation, the valve includes a non-rising handwheel. As a leading gate valve supplier from China, we offer precision-engineered valves tailored to meet demanding industrial applications.

Detail Information

Bolted Bonnet Gate Valve, ASTM A352 LCB, 14 Inch, DN350, 150 LB, RF Flanged.

Valve Description

1821051 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A352 LCB, ASTM A890 5A, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN16
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal

Bolted Bonnet Gate Valve
Bolted Bonnet Gate Valve

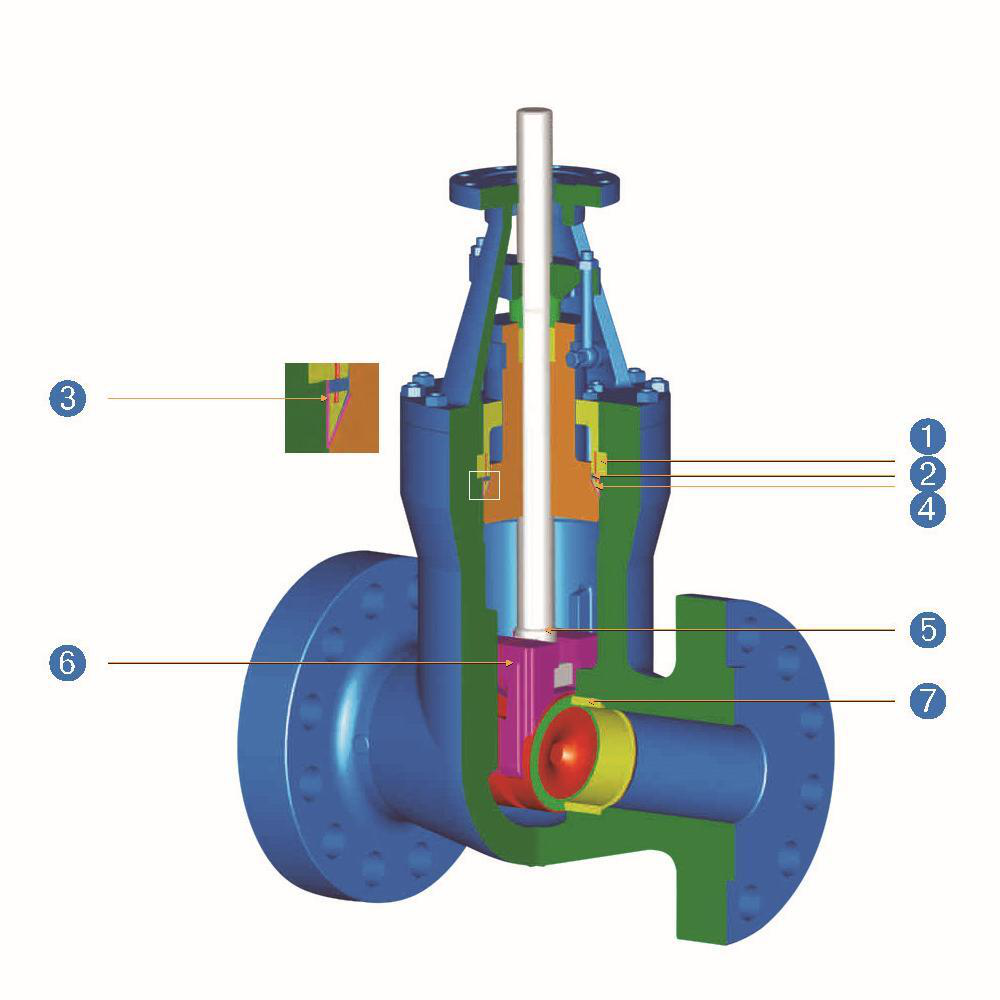

Pressure Seal Bonnet Gate Valve
Pressure Seal Bonnet Gate Valve
