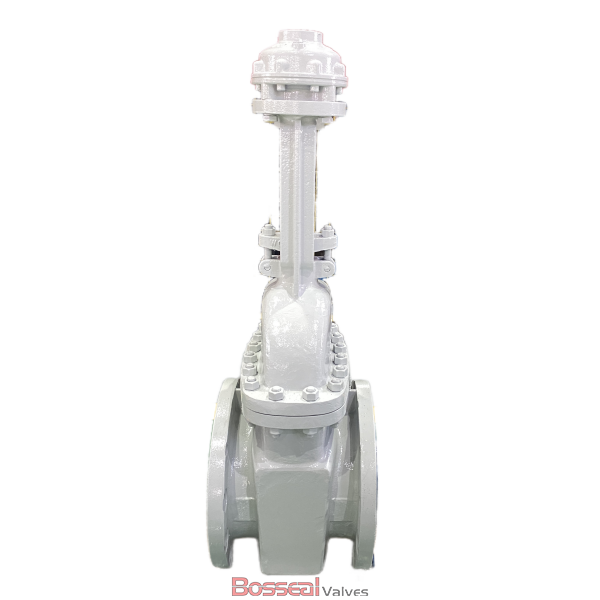

Bolted Bonnet Gate Valve, A351 CF8M, 12 IN, CL 300, API 600

Name: Bolted Bonnet Gate Valve, A351 CF8M, 12 IN, CL 300, API 600
SKU: 1821071
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1821071

As a top gate valve supplier from China, we offer high-quality 12-inch (DN300) valves designed for optimal performance. Our gate valve, constructed from stainless steel ASTM A351 CF8M, adheres to API 600 standards for reliability and durability. With a 300 LB rating, it is built to handle demanding applications. The valve features an OS&Y design, flexible wedge, and bolted bonnet, along with raised face (RF) flanged ends for secure connections. Trust us for premium gate valves that meet your exact specifications and industry requirements.

Request a quote

Tags:

Bolted Bonnet Gate Valve

ASTM A351 CF8M Gate Valve

12 Inch Gate Valve

Detail Information

Bolted Bonnet Gate Valve, ASTM A351 CF8M, 12 Inch/DN300, 300 LB, OS&Y, RF Flanged.

Valve Description

1821071 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8M, ASTM A890 5A, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RF Flanged
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
