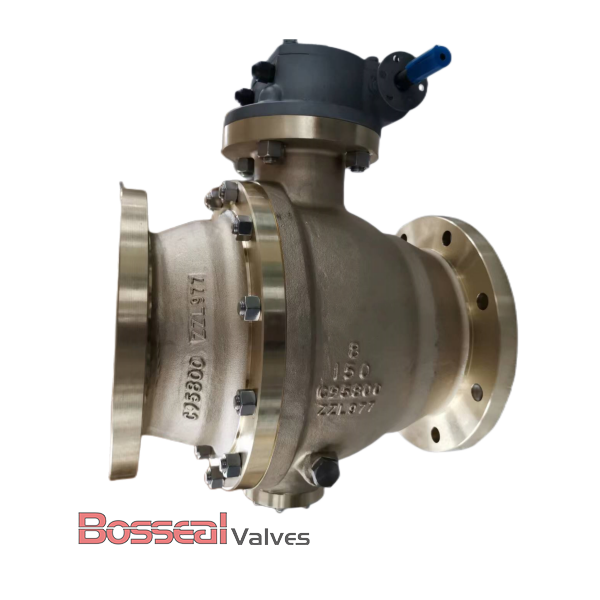

Bolted Bonnet Bronze Ball Valves, 2 PC, API 6D, C95800, 10IN

Key Specifications / Features

Model no. : BV-20250322-08

As a leading ball valve supplier in China, we provide high-quality aluminum bronze ball valves designed to API 6D standards. Featuring a robust ASTM B148 C95800 body and trim, our 10-inch, Class 300 LB valves ensure excellent corrosion resistance and durability. This 2-piece design includes a bolted bonnet for secure sealing and easy maintenance. With FF or RF flanged ends for reliable installation, these valves deliver superior performance in marine, offshore, and industrial applications. Engineered for efficiency and long service life, they offer dependable flow control in demanding environments.

Detail Information

Valve Description:
187301028 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 10 Inch
Nominal Class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C to +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
