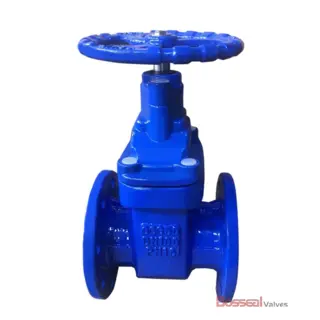

AWWA Resilient Gate Valve, PN15, DN80, ASTM A536

Key Specifications / Features

Model no. : 1871013

As a trusted supplier of ASTM A536 resilient gate valves in China, we offer products designed to meet AWWA standards. Crafted from high-quality ductile iron, our valves are rated for PN15 pressure and available in DN80 size. Featuring a rising stem for easy visual indication, a resilient seat for reliable sealing, and a non-rising handwheel for space-saving operation, these valves are built for efficiency. The flanged end design ensures straightforward installation, making them ideal for various industrial and municipal applications.

Detail Information

Ductile Iron Resilient Gate Valve, AWWA, PN15, DN80/3 Inch, Rising Stem, Flanged End.

Valve Description

1871013 Gate Valve
Design Standard: AWWA C500, C509, C515, DIN 3352, BS 5163
Structure: Resilient Seat, Rising Stem
Nominal Size: DN80, 3 Inch
Nominal Class: PN15
Body Material: ASTM A536, Cast Iron, Ductile Iron-GGG40, GGG50
Bore Type: Standard Bore
Operation: Handwheel, Gear
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
End Connection: Flanged
Face to Face: EN 558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230

Product Range

Body Material: Cast Iron, Ductile Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
End Connection: Flanged, Threaded
Working Temperature: -29°C - +80°C



Nickname*:
E-mail*:
Rate*:
Comments*:

Next: GGG40 Gate Valve, DN100, PN15, BS 5163, Resilient Seated

Previous: ASTM A216 WCB Wedge Gate Valve, API 600, 24 Inch, 150 LB, RF

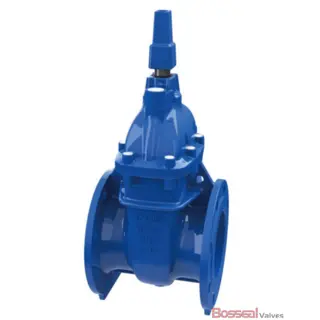

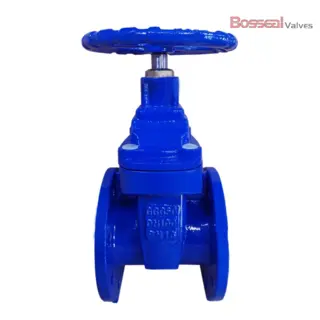

Similar Products
