AWWA C500, C509, C515 Gate Valve, Ductile Iron, PN15, DN600

Name: AWWA C500, C509, C515 Gate Valve, Ductile Iron, PN15, DN600
SKU: 1871023
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1871023

As a leading supplier of ASTM A536 gate valves in China, we provide high-performance valves that meet AWWA C500, AWWA C509, AWWA C515 standards. Our DN600 (24-inch) valves are crafted from durable ductile iron and are rated for PN15 pressure. Featuring a rising stem for clear operation indication, these valves are equipped with a resilient seat for reliable sealing and a non-rising handwheel for efficient operation. Designed with flanged ends, they ensure easy installation and robust performance, making them ideal for demanding industrial applications.

Request a quote

Tags:

AWWA Gate Valve

DN600 Gate Valve

ASTM A536 Gate Valve

Detail Information

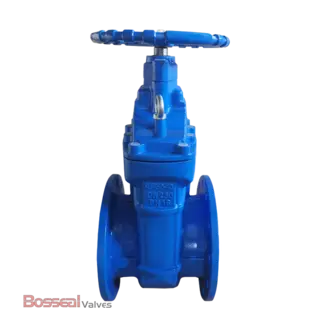

Ductile Iron Resilient Gate Valve, AWWA, PN15, DN600/24 Inch, Rising Stem, Flanged End.

Valve Description

1871023 Gate Valve
Design Standard: AWWA C500, AWWA C509, AWWA C515, DIN 3352, BS 5163
Structure: Resilient Seat, Rising Stem
Nominal Size: DN600, 24 Inch
Nominal Class: PN15
Body Material: ASTM A536, Cast Iron, Ductile Iron-GGG40, GGG50
Bore Type: Standard Bore
Operation: Handwheel, Gear
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
End Connection: Flanged
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230

Product Range

Body Material: Cast Iron, Ductile Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
Working Temperature: -29°C - +80°C
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
