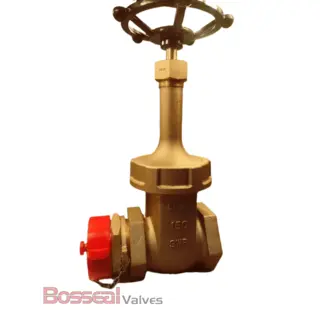

ASTM B62 C83600 Gate Valves, MSS SP-80, 1 IN, CL300, NPT

Key Specifications / Features

Model no. : 1876024

As a trusted supplier of non-rising stem bronze gate valves from China, we offer valves built to MSS SP-80 standards with durable ASTM B62 C83600 bronze bodies. Our 1-inch (DN25) valves are rated for Class 300 LB and feature a threaded bonnet for secure connections and easy maintenance. Designed with a handwheel for smooth and precise operation, these valves provide excellent flow control in various industrial settings, ensuring reliable performance and long service life.

Detail Information

ASTM B62 C83600 Gate Valves, MSS SP-80, 1 Inch, DN25, 300 LB, Threaded Bonnet.

Valve Description:
1876024 Gate Valve
Design Standard: MSS SP-80
Nominal Size: 1 Inch, DN25
Nominal Class: Class 300 LB, PN50
Body Material: ASTM B62 C83600
Bore Type: Standard Bore
Structure: NPT Threaded, Union Bonnet
Operation: Handwheel
Trim Material: ASTM B62 C83600
End Connection: Threaded ASME B1.20.1
Face to Face: Manufacturer Standard
Test and Inspection: MSS SP-80

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing under MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:

Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4, 3/8, 1/2, 3/4, 1, 1-1/2, 2, 2-1/2, 3 Inch (DN6 – DN80)
Pressure Range: Class 125, 150, 200, 300 LB
End Connection: NPT Threaded
Working Temperature: -20°C - +150°C
Operation: Handwheel

Drawing for Bronze Gate Valve
