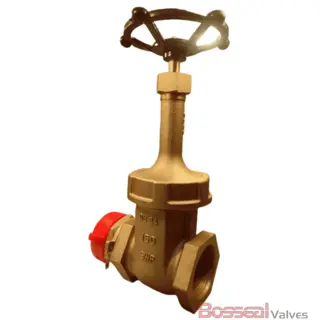

ASTM B62 Bronze Gate Valve, MSS SP-80, 2-1/2 IN, CL 300, NPT

Name: ASTM B62 Bronze Gate Valve, MSS SP-80, 2-1/2 IN, CL 300, NPT
SKU: 1876038
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876038

As a trusted provider of China's MSS SP-80 bronze gate valves, we supply high-quality valves with ASTM B62 C83600 bronze bodies. Our 2-1/2 inch gate valves are rated for Class 300 LB and feature a threaded bonnet for secure assembly. Available with both rising stem and non-rising stem options, these valves offer versatile installation and operation. Designed for durability and reliability, they provide smooth flow control in various industrial applications, making them an excellent choice for long-term performance.

Request a quote

Tags:

ASTM B62 C83600 Gate Valve

MSS SP-80 Gate Valve

Bronze Gate Valve

Detail Information

MSS SP-80 Bronze Gate Valves, 2-1/2 Inch/DN65, Class 300 LB, Threaded Bonnet.

Valve Description:
1876038 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Body Material: ASTM B62 C83600
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 300 LB
Trim Material: ASTM B62 C83600
Operation: Handwheel
Face to Face: Manufacturer Standard
Test and Inspection: MSS SP-80
Structure: NPT Threaded, Union Bonnet
End Connection: Threaded ASME B1.20.1

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing by MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Pressure Range: Class 125, 150, 200, 300 LB
Working Temperature: -20°C to +150°C
Operation: Handwheel
End Connection: Threaded NPT
