Key Specifications / Features
As a factory in China specializing in double-offset butterfly valves, we offer robust solutions crafted from ASTM B148 C95800 aluminum bronze. Our 14-inches valves meet EN 593 and API 609 standards, featuring a double eccentric design for enhanced performance. Rated at 150 LB, they come with a 17-4PH stem and wafer end for reliable operation. Designed for long service life and frequent cycling, these valves ensure lower torque, tight sealing, and excellent control characteristics. They offer bi-directional sealing under full pressure and are available with a fire-safe seat option.
Double Eccentric

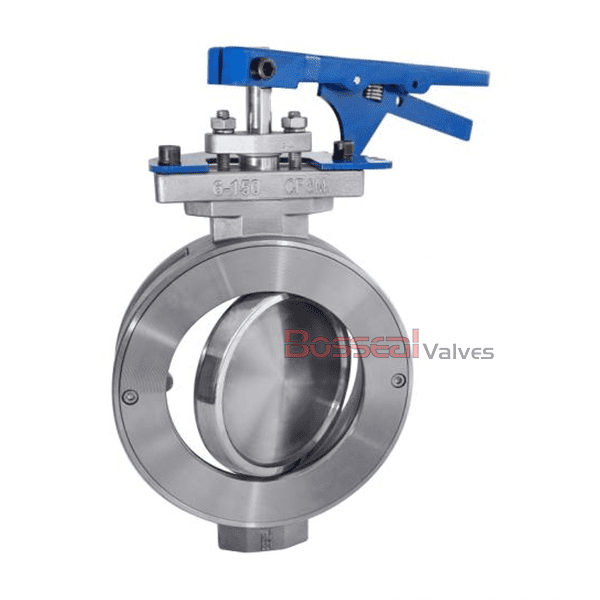

Butterfly Valve, EN 593, 14 Inch/DN350, 150 LB, Double Offset.
Valve Description
Compared to other valve types, double eccentric butterfly valves offer clear advantages in cost efficiency, space savings, and a wider size range. They provide faster operation with less restriction and reduced wear between the disc and seat, ensuring a longer service life and lower total cost of ownership. The two-offset design allows for extended valve life, lower torque, and suitability for frequent operation. Bosseal's high-performance butterfly valves have successfully passed a million-cycle test, demonstrating exceptional durability.
| 1862167 High-Performance Butterfly Valve |
| Design Standard: |
EN 593, API 609 Category B |
| Structure: |
Double Offset, Double Eccentric |
| Nominal Size: |
14 Inch, DN350 |
| Nominal Class: |
Class 150 LB, PN20 |
| Seat Type: |
Soft Seat |
| Operation: |
Gear |
| Body Material: |
ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, Titanium. |
| Seat: |
RPTFE, PPL |
| End Connection: |
Wafer |
| Face to Face: |
API 609, EN 593 |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
