API 600

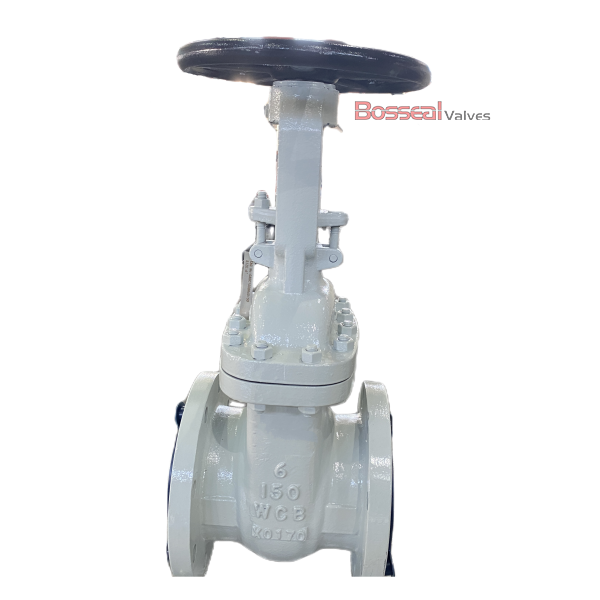

Gate Valve, OS&Y, ASTM B148 C95800 Body, 10 Inch/DN250, 900 LB, RTJ Flanged, Flexible Wedge.
Valve Description
1821112 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A.
Nominal Size: 10 Inch, DN250
Nominal Class: Class 900 LB, PN150
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RTJ Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Key Features
1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF, RTJ, BW
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
Gate Valve Introduction
Gate valves are multi-turn valves used for isolating pipelines with full open and close capability. They operate with a threaded stem that moves the gate into two metal seats to block fluid flow, typically featuring hard-facing materials like Stellite CoCrW or stainless steel overlay for durability, though soft seats are available for specific applications such as water. Compared to other shut-off valves, gate valves require less installation space and their slow operation helps prevent water hammer. They are ideal for applications needing low pressure drop and unobstructed flow, and are suitable for various fluids, including water, oil, steam, gas, and slurry.
